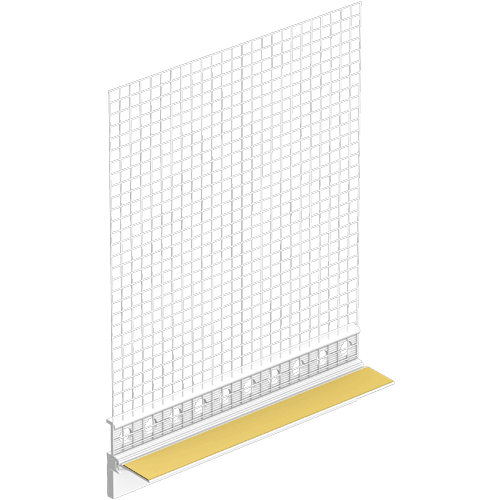

EJOT® Pro RAP Giga Flex slim
Specification
-
Applications

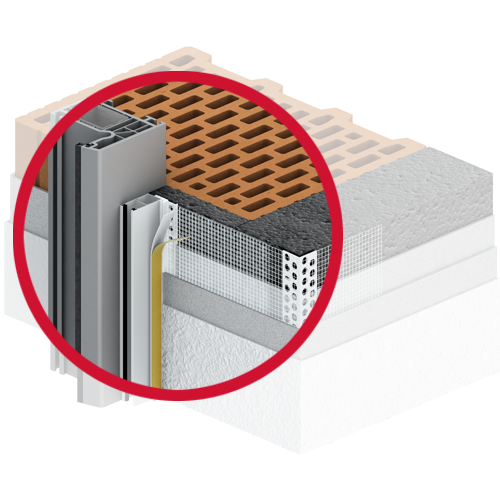

For an exact, aligned and perpendicular plaster connection on roller shutter guide rails where high compensatory movements must be expected.
-
Properties
- Increased, three-dimensional movement absorption
- Small construction width (7 mm)
- Water-bearing level at the level of the plaster finish
- Easy to process due to stop bar
- Flexible transition to the tear-off tab
- Suitable for insulation thicknesses up to 300 mm and window sizes up to 10 m²
- Connection permanently impervious to driving rain
- Exact and clean plaster finish, easy processing
- Maintenance-free connection joint
- Integrated transfer tape for attaching the cover film
- No subsequent cleaning work
- Transport and storage lying down
-
Technical specifications
- PVC-U (unplasticized) profile with fiber glass mesh 160 g alkali-resistant and non-shifting
- Mesh flag 12.5 cm. Polyethylene foam tape impervious to driving rain 10 x 2 mm and 4 x 3 mm with high adhesive strength, optimal ageing and moisture resistance as well as maximum resistance to UV and ozone radiation
- Movements are permanently absorbed via the integrated PVC-P (plasticized) loop. Self-adhesive transfer tape 12 mm for holding the protective film
Additional information
ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information
| Orderidentifier | Article Number | Unit |
|---|---|---|
| EJOT Pro RAP07-GFs/01-240-160-WN-12,5 | 8804040001 | 25 |
