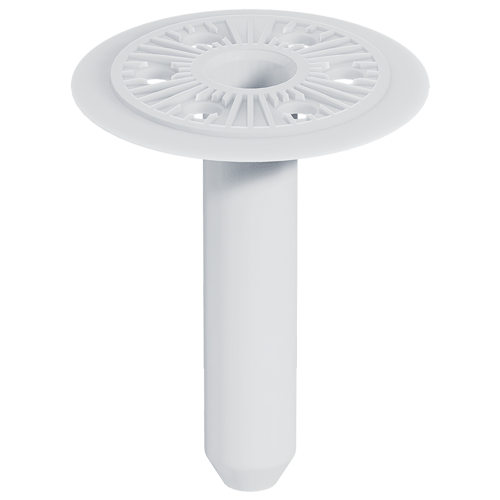

EJOT® TE 60/50

Specification

Applications
- Fastening of External Thermal Insulation Systems on problematic substrates
- To combine with EJOT SDF-S plus 8UB
Properties
- Point thermal transmittance λ 0.002 W/K
- European Technical Approval: ETA-04/0064
Technical specifications

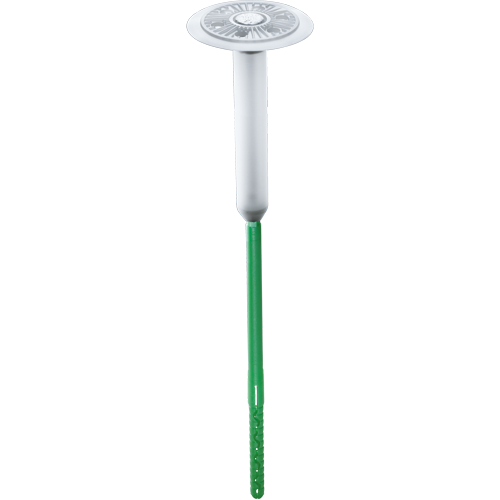

EJOT TE 60/50 and 60/110 in combination with EJOT SDF-S plus 8UB
- Shaft length EJOT TE 60/50: 50 mm
- Shaft length EJOT TE 60/110: 110 mm
- Washer diameter: 60 mm
- Screw drive: TX30
- Drill hole depth h₁≥ : 80 mm
- Embedment depth h_ef ≥ : 70 mm
- Point thermal transmission χ TE 60/50: 0.002 W/K
- Point thermal transmission χ TE 60/110 with insulation thickness 120-150 mm: 0.000 W/K
- Point thermal transmission χ TE 60/110 with insulation thickness 150-240: 0.001 W/K
- European Technical Approval ETA-04/0064
Additional information
- View Construction Brochures

Downloads

DoP ETA-04/0064.pdf 1 MB
Safety data sheet.pdf 32 KB
ETA-04/0064.pdf 1 MB
EPD Fastening solutions for ETICS.pdf 1 MB

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Orderidentifier	Article Number	Washer diameter mm	Length mm	Embedment depth h_ef≥	Drill hole depth	Unit
TE 60/50 Tube Washer	8533050000	60.0	50.0	70.0	80.0	100
Specifications Washer diameter 60.0 Length 50.0 Embedment depth h_ef≥ 70.0 Drill hole depth 80.0 Orderidentifier TE 60/50 Tube Washer Unit 100
