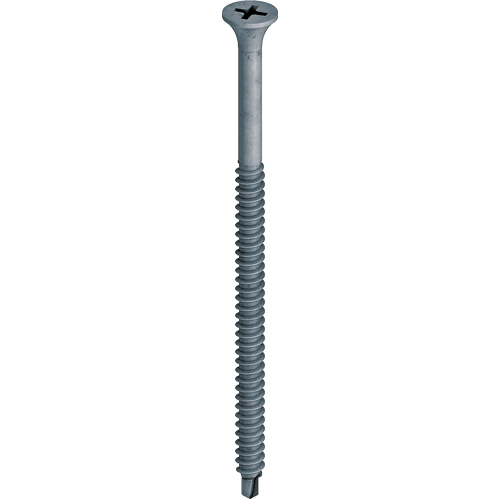

EJOT® TKR 4.8

Specification

Applications
- For fixing roofing membrane to sheet steel substructures from 0.7 mm upto 1.2 mm
- In combination with EJOT® tube washer HTK 50
- In combination with EJOT® stress plate HTV 82/40 TK
- In combination witht EJOT® stress plate HTV 82/40 F
- Popular sizes available pre-assembled - ask for details.
Properties
- Carbon steel with organic corrosion resistant finish
Technical specifications
- Drive: P2 drive
- Drilling capacity: 0.7 -1.2 mm
Additional information

Downloads

ETA-07/0013.pdf 3 MB
TKR-4.8-UK-datasheet-issue-1.pdf 399 KB
Flat-Roofing-FM-Approval.pdf 157 KB
EJOT-epd-flat-roof-fastening-systems-EN-GB.pdf 1 MB

When choosing your product below, please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Length mm	ø mm		Unit
TKR 4.8 x 35	6496700629	35.0	4.8	1.5	100
Specifications Length 35.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 35 Unit 100 * Price / 100
TKR 4.8 x 50	6496800629	50.0	4.8	1.5	100
Specifications Length 50.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 50 Unit 100 * Price / 100
DABO TKR 4.8x 60	6496900629	60.0	4.8	1.5	100
Specifications Length 60.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x 60 Unit 100 * Price / 100
TKR 4.8 x 70	6497000629	70.0	4.8	1.5	100
Specifications Length 70.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 70 Unit 100 * Price / 100
DABO TKR 4.8x 80	6497100629	80.0	4.8	1.5	100
Specifications Length 80.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x 80 Unit 100 * Price / 100
DABO TKR 4.8x 90	6497200629	90.0	4.8	1.5	100
Specifications Length 90.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x 90 Unit 100 * Price / 100
DABO TKR 4.8x100	6497300629	100.0	4.8	1.5	100
Specifications Length 100.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x100 Unit 100 * Price / 100
DABO TKR 4.8x110	6497400629	110.0	4.8	1.5	100
Specifications Length 110.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x110 Unit 100 * Price / 100
DABO TKR 4.8x120	6497500629	120.0	4.8	1.5	100
Specifications Length 120.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x120 Unit 100 * Price / 100
TKR 4.8 x 130	3497600629	130.0	4.8	1.5	100
Specifications Length 130.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 130 Unit 100 * Price / 100
DABO TKR 4.8x140	6497700629	140.0	4.8	1.5	100
Specifications Length 140.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x140 Unit 100 * Price / 100
TKR 4.8 x 150	3497800629	150.0	4.8	1.5	100
Specifications Length 150.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 150 Unit 100 * Price / 100
DABO TKR 4.8x160	6497900629	160.0	4.8	1.5	100
Specifications Length 160.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x160 Unit 100 * Price / 100
DABO TKR 4.8x180	6498100629	180.0	4.8	1.5	100
Specifications Length 180.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x180 Unit 100 * Price / 100
DABO TKR 4.8x200	6498300629	200.0	4.8	1.5	100
Specifications Length 200.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x200 Unit 100 * Price / 100
TKR 4.8 x 220	6498400629	220.0	4.8	1.5	100
Specifications Length 220.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 220 Unit 100 * Price / 100
TKR 4.8 x 240	6498600629	240.0	4.8	1.5	100
Specifications Length 240.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier TKR 4.8 x 240 Unit 100 * Price / 100
DABO TKR 4.8x260	6498800629	260.0	4.8	1.5	100
Specifications Length 260.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x260 Unit 100 * Price / 100
DABO TKR 4.8x280	6498900629	280.0	4.8	1.5	100
Specifications Length 280.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x280 Unit 100 * Price / 100
DABO TKR 4.8x300	6499000629	300.0	4.8	1.5	100
Specifications Length 300.0 ø 4.8 Maximum drilling capacity 1.5 Availability Orderidentifier DABO TKR 4.8x300 Unit 100 * Price / 100
