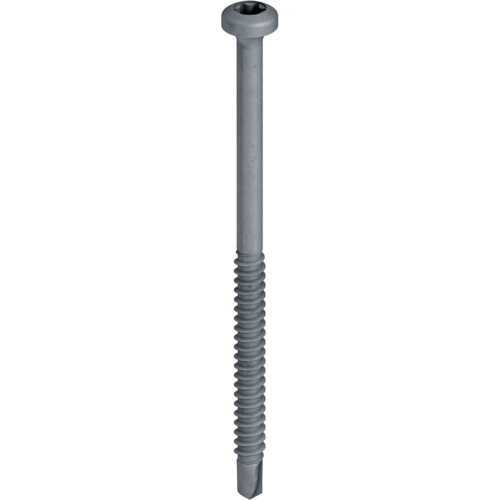

EJOT® TKR ZT6 5.5

Specification

Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 3.0 mm ≤ 6.0mm mm
- For combination with EJOT® stress plates
Properties
- Case-hardened steel
- Climadur coated – high-quality coating to improve corrosion protection (15 Runden Kesternich, DIN 50018, 1997)
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity: 6.0 mm
- Drive: Hexalobular drive T30
Length determination (min. lengths)
- Sheet steel: Insulation thickness + 20 mm
- Timber: Insulation thickness + 30 mm
Additional information
- Register now for online prices
- View Construction Brochures

Downloads

ETA-07/0013.pdf 3 MB
TKR-ZT6-5.5-UK-datasheet-issue-1.pdf 374 KB
EJOT-epd-flat-roof-fastening-systems-EN-GB.pdf 1 MB

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Length mm	ø mm	Unit
TKR ZT6 5.5x35	3495035629	35.0	5.5	100
Specifications Length 35.0 ø 5.5 Availability Orderidentifier TKR ZT6 5.5x35 Unit 100 * Price / 100
TKR ZT6 5.5x70	3495070629	70.0	5.5	100
Specifications Length 70.0 ø 5.5 Availability Orderidentifier TKR ZT6 5.5x70 Unit 100 * Price / 100
TKR ZT6 5.5x90	3495090629	90.0	5.5	100
Specifications Length 90.0 ø 5.5 Availability Orderidentifier TKR ZT6 5.5x90 Unit 100 * Price / 100
TKR ZT6 5.5x110	3495110629	110.0	5.5	100
Specifications Length 110.0 ø 5.5 Availability Orderidentifier TKR ZT6 5.5x110 Unit 100 * Price / 100
