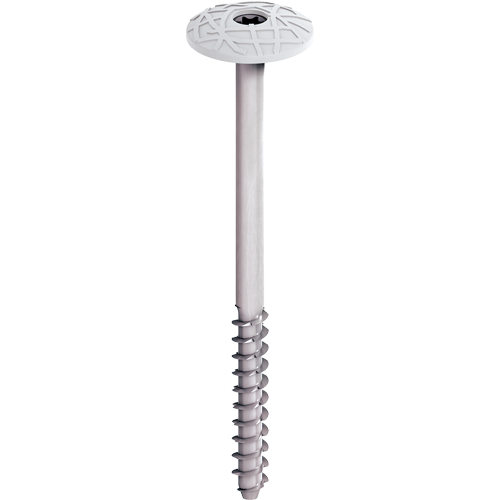

EJOT® DDS

Specification

Applications
- For fixing insulation and acoustic boards to concrete soffits
- For internal use
Properties
- Carbon steel fastener with a corrosion resistant duplex coating and self-tapping thread for a secure fastening
- Fast and simple installation
- No expansion – favourable with pre-stressed concrete beams
- Can be used with separate DDT 70 galvanised steel spreader washer
- One piece anchor
Technical specifications
- Head diameter: 25 mm
- Diameter: 7.3mm
- Drill hole diameter 6 mm
- Drill hole depth h1 >: 35 mm
- Embedment depth in concrete hef>: 25 mm
- Screw drive: TX30
- Corrosion resistance classification: C1 – C2
- Tensile strength in concrete C20/25 - C50/60: Design resistance 0.5kN (On-site testing recommended to confirm site specific requirements)

Downloads

Safety data sheet.pdf 33 KB
National Technical Approval-Z-21.8-1980_EN_final.pdf 377 KB
DDS-S-UK-datasheet-issue-1.pdf 322 KB

Read & Download Roofing and Cladding Brochure

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	ø mm	Pilot Hole Ø mm	Colour	Length mm								Unit
DDS 7.3 x 50 White	8419050740	7.3	6.0	White	50.0	Ceiling Insulation Fasteners	25.0 - 35.0	50.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 50.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 25.0 35.0 Anchor length 50.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 50 White Unit 100 * Price / 100 show more
DDS 7.3 x 50 Beige	8419050780	7.3	6.0	Beige	50.0	Ceiling Insulation Fasteners	25.0 - 35.0	50.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 50.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 25.0 35.0 Anchor length 50.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 50 Beige Unit 100 * Price / 100 show more
DDS 7.3 x 75 White	8419075740	7.3	6.0	White	75.0	Ceiling Insulation Fasteners	50.0 - 55.0	75.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 75.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 50.0 55.0 Anchor length 75.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 75 White Unit 100 * Price / 100 show more
DDS 7.3 x 75 Beige	8419075780	7.3	6.0	Beige	75.0	Ceiling Insulation Fasteners	50.0 - 55.0	75.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 75.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 50.0 55.0 Anchor length 75.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 75 Beige Unit 100 * Price / 100 show more
EJOT DDS 085 beige	8419085780	7.3	6.0		85.0	Ceiling Insulation Fasteners	60.0		6.0	30.0	screw-in-anchor	Beige
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Length 85.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 60.0 Anchor length Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier EJOT DDS 085 beige Unit * Price / 100 show more
DDS 7.3 x 100 White	8419100740	7.3	6.0	White	100.0	Ceiling Insulation Fasteners	75.0 - 80.0	100.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 100.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 75.0 80.0 Anchor length 100.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 100 White Unit 100 * Price / 100 show more
DDS 7.3 x 100 Beige	8419100780	7.3	6.0	Beige	100.0	Ceiling Insulation Fasteners	75.0 - 80.0	100.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 100.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 75.0 80.0 Anchor length 100.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 100 Beige Unit 100 * Price / 100 show more
DDS 7.3 x 125 White	8419125740	7.3	6.0	White	125.0	Ceiling Insulation Fasteners	100.0 - 105.0	125.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 125.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 100.0 105.0 Anchor length 125.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 125 White Unit 100 * Price / 100 show more
DDS 7.3 x 125 Beige	8419125780	7.3	6.0	Beige	125.0	Ceiling Insulation Fasteners	100.0 - 105.0	125.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 125.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 100.0 105.0 Anchor length 125.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 125 Beige Unit 100 * Price / 100 show more
DDS 7.3 x 150 White	8419150740	7.3	6.0	White	150.0	Ceiling Insulation Fasteners	125.0 - 130.0	150.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 150.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 125.0 130.0 Anchor length 150.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 150 White Unit 100 * Price / 100 show more
DDS 7.3 x 150 Beige	8419150780	7.3	6.0	Beige	150.0	Ceiling Insulation Fasteners	125.0 - 130.0	150.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 150.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 125.0 130.0 Anchor length 150.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 150 Beige Unit 100 * Price / 100 show more
DDS 7.3 x 175 White	8419175740	7.3	6.0	White	175.0	Ceiling Insulation Fasteners	150.0 - 155.0	175.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 175.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 150.0 155.0 Anchor length 175.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 175 White Unit 100 * Price / 100 show more
DDS 7.3 x 175 Beige	8419175780	7.3	6.0	Beige	175.0	Ceiling Insulation Fasteners	150.0 - 155.0	175.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 175.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 150.0 155.0 Anchor length 175.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 175 Beige Unit 100 * Price / 100 show more
DDS 7.3 x 200 White	8419200740	7.3	6.0	White	200.0	Ceiling Insulation Fasteners	175.0 - 180.0	200.0	6.0	30.0	screw-in-anchor	White	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour White Length 200.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 175.0 180.0 Anchor length 200.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour White Availability Orderidentifier DDS 7.3 x 200 White Unit 100 * Price / 100 show more
DDS 7.3 x 200 Beige	8419200780	7.3	6.0	Beige	200.0	Ceiling Insulation Fasteners	175.0 - 180.0	200.0	6.0	30.0	screw-in-anchor	Beige	100
Specifications ø 7.3 Pilot Hole Ø 6.0 Colour Beige Length 200.0 Type of ETICS Anchors Ceiling Insulation Fasteners Insulation thickness 175.0 180.0 Anchor length 200.0 Inner Hole Ø 6.0 Embedment 30.0 Screw-in-/hammer-inanchor screw-in-anchor Head Colour Beige Availability Orderidentifier DDS 7.3 x 200 Beige Unit 100 * Price / 100 show more
