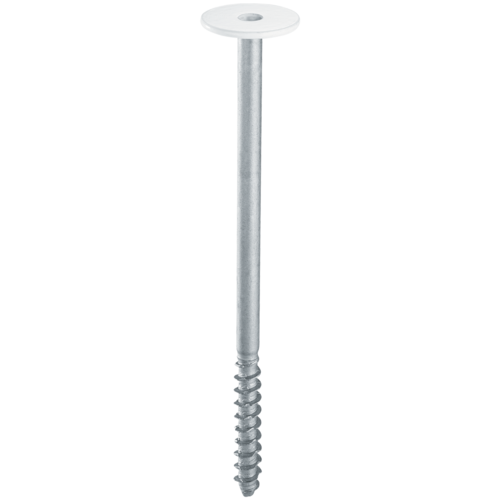

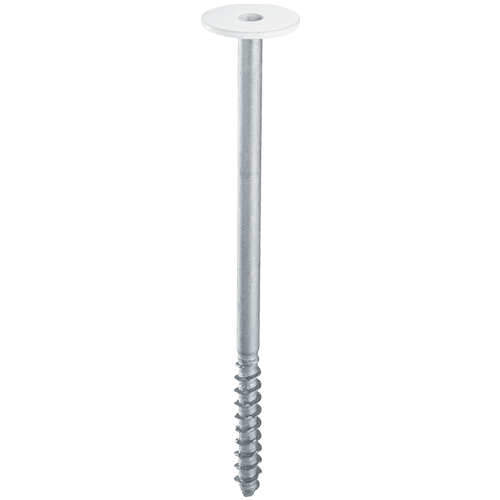

EJOT® DDS-Z
Specification
-
Applications
- For fixing insulation and acoustic boards to concrete soffits
- For installation in cracked and non-cracked concrete
- For external use
-
Properties
- Carbon steel fastener with a corrosion-resistant duplex coating and self-tapping thread for a secure fastening
- Fast and simple installation
- No expansion – favourable with pre-stressed concrete beams
- Can be used with a separate DDT 70 galvanised steel spreader washer
- One-piece anchor
-
Technical specifications
- Head diameter: 24 mm
- Diameter: 7.3mm
- Drill hole diameter: 6 mm
- Drill hole depth h1 ≥: 35mm
- Embedment depth hef≥: 25 mm
- Screw drive: TX30
- Building material class: A2
- Corrosion resistance classification: C1 - C3
- DIBt Approved: Z-21.8-1980
- Characteristic load: Cracked and uncracked normal weight concrete C 20/25 - C 50/60: Design resistance 0.5kN
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Type of ETICS Anchors | Construction way | Screw-in-/hammer-inanchor | Head Colour | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DDS-Z Ø 24 / 7,3 x 50 RAL 9002 | 5929050682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 75 RAL 9002 | 5929075682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 85 RAL 9002 | 5929085682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 100 RAL 9002 | 5929100682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 125 RAL 9002 | 5929125682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 135 RAL 9002 | 5929135682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7.3 X 150 RAL 9002 | 5929150682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 165 RAL 9002 | 5929165682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 175 RAL 9002 | 5929175682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 200 RAL 9002 | 5929200682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 225 RAL 9002 | 5929225682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 250 RAL 9002 | 5929250682 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 225 silver coated (non painted) | 5929225610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 275 silver coated (non painted) | 5929275610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 300 silver coated (non painted) | 5929300610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 325 silver coated (non painted) | 5929325610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 350 silver coated (non painted) | 5929350610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
|||||||||||
| DDS-Z Ø 24 / 7,3 x 400 silver coated (non painted) | 5929400610 | Ceiling Insulation Fasteners | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | ||||
Specifications
|
