DMT 80
For fastening soft insulating materials in combination with the EJOT® DMH

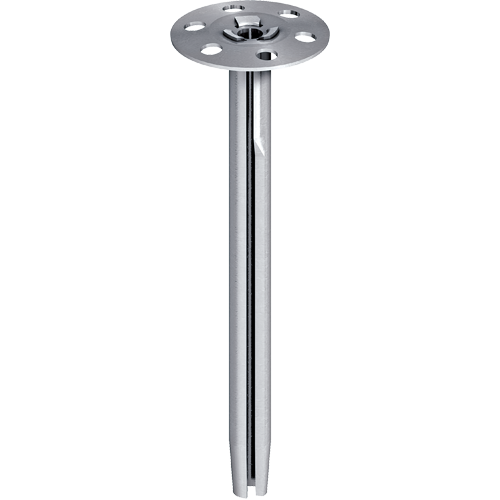

EJOT® DMH 8
Specification
-
Applications
- For fixing rigid insulation for high fire protection requirements to concrete, blockwork and brick (fire barrier details)
-
Properties
- "V" - Aluzinc coated carbon steel tubular bodied anchor
- "E" - A2 stainless steel tubular bodied anchor
-
Technical specifications
- Hammer in anchor
- Pilot hole 8mm
- 40mm Minimum Embedment (Concrete)
- 50mm Minimum Embedment (Masonry)
- Head diameter is 35mm
- Can be used in conjunction with a DMT washer for increased washer face to 80mm
Additional information
When choosing your product below, please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order, including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Pilot Hole Ø mm | Material | Insulation thickness mm | Anchor length mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|
| DMH 8 x 80 E | 9700030302 | 8.0 | 8.0 | Stainless Steel | 1.0 - 30.0 | 80.0 | 100 | |||
| DMH 8x 80 V | 9800030301 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 1.0 - 40.0 | 80.0 | 100 | |||
| DMH 8 x 110 E | 9700033603 | 8.0 | 8.0 | Stainless Steel | 40.0 - 70.0 | 110.0 | 100 | |||
| DMH 8 x 110V | 9800030602 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 40.0 - 70.0 | 110.0 | 100 | |||
| DMH-8x140 V | 9800030603 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 70.0 - 100.0 | 140.0 | 100 | |||
| DMH 8x140 E | 9800036904 | 8.0 | 8.0 | Stainless Steel | 70.0 - 100.0 | 140.0 | 100 | |||
| DMH 8x170 V | 9800030912 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 100.0 - 130.0 | 170.0 | 100 | |||
| DMH 8x170 E | 9800035912 | 8.0 | 8.0 | Stainless Steel | 100.0 - 130.0 | 170.0 | 100 | |||
| DMH 8 x 200 V | 9700031215 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 160.0 - 130.0 | 200.0 | 100 | |||
| DMH 8 x 200 E | 9700035215 | 8.0 | 8.0 | Stainless Steel | 160.0 - 130.0 | 200.0 | 100 | |||
| DMH - 8 x 200 V | 9800031215 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 130.0 - 160.0 | 200.0 | 100 | |||
| DMH 8 x 200 E | 9800035215 | 8.0 | 8.0 | Stainless Steel | 130.0 - 160.0 | 200.0 | 100 | |||
| DMH 8 x 250 V | 9700031520 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 210.0 - 160.0 | 250.0 | 100 | |||
| DMH 8 x 250 E | 9700035520 | 8.0 | 8.0 | Stainless Steel | 160.0 - 210.0 | 250.0 | 100 | |||
| DMH 8 x 250 V | 9800031520 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 160.0 - 210.0 | 250.0 | 100 | |||
| DMH 8 x 300 V | 9700031300 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 260.0 - 210.0 | 300.0 | 100 | |||
| DMH 8 x 300 E | 9700035300 | 8.0 | 8.0 | Stainless Steel | 210.0 - 260.0 | 300.0 | 100 | |||
| DMH-8x300 V | 9800031300 | 8.0 | 8.0 | Carbon steel, aluzinc coated | 210.0 - 260.0 | 300.0 | 100 | |||
