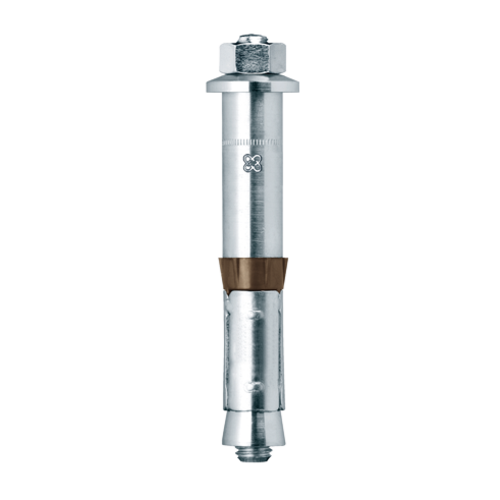

LIEBIG® Anchor AB


Specification

  • Applications

    The Anchor AB is suitable for fixing down:

    • Steel baseplates
    • Machinery
    • Guard rails
    • Storage
    • Racking
    • Facades
    • Cable trays
    • Gates
    • Lifting systems
    • Steel construction

  • Properties

    • Special lengths available
    • Dome washer for visual confirmation of torque for correct installation
    • Economical high-capacity anchor for a wide range of uses
    • Suitable for cracked and non-cracked concrete

  • Technical specifications

    • ETA approved
    • Hex nut
    • Thread Size: M6 - M16
    • Material: zinc plated 8.8 carbon steel

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Thread Thread diameter mm Clamp thickness mm Unit
    LIEBIG® Anchor AB M6-10/45/5 9650045605 M6 10.0 5.0 50

    Specifications

    Thread
    M6
    Thread diameter
    10.0
    Clamp thickness
    5.0
    Orderidentifier
    LIEBIG® Anchor AB M6-10/45/5
    Unit
    50
    LIEBIG® Anchor AB M6-10/45/15 9650045615 M6 10.0 15.0 50

    Specifications

    Thread
    M6
    Thread diameter
    10.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Anchor AB M6-10/45/15
    Unit
    50
    LIEBIG® Anchor AB M12-20/80/15 9650080615 M12 20.0 15.0 10

    Specifications

    Thread
    M12
    Thread diameter
    20.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Anchor AB M12-20/80/15
    Unit
    10
    LIEBIG® Anchor AB M12-20/80/40 9650080640 M12 20.0 40.0 10

    Specifications

    Thread
    M12
    Thread diameter
    20.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Anchor AB M12-20/80/40
    Unit
    10
    LIEBIG® Anchor AB M12-20/80/25 9650080825 M12 20.0 25.0 10

    Specifications

    Thread
    M12
    Thread diameter
    20.0
    Clamp thickness
    25.0
    Orderidentifier
    LIEBIG® Anchor AB M12-20/80/25
    Unit
    10
    LIEBIG® Anchor AB M8-12/55/15 9652055615 M8 12.0 15.0 25

    Specifications

    Thread
    M8
    Thread diameter
    12.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Anchor AB M8-12/55/15
    Unit
    25
    LIEBIG® Anchor AB M8-12/55/40 9652055640 M8 12.0 40.0 25

    Specifications

    Thread
    M8
    Thread diameter
    12.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Anchor AB M8-12/55/40
    Unit
    25
    LIEBIG® Anchor AB M10-15/65/15 9655065615 M10 15.0 15.0 25

    Specifications

    Thread
    M10
    Thread diameter
    15.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Anchor AB M10-15/65/15
    Unit
    25
    LIEBIG® Anchor AB M10-15/65/25 9655065625 M10 15.0 25.0 10

    Specifications

    Thread
    M10
    Thread diameter
    15.0
    Clamp thickness
    25.0
    Orderidentifier
    LIEBIG® Anchor AB M10-15/65/25
    Unit
    10
    LIEBIG® Anchor AB M10-15/65/40 9655065640 M10 15.0 40.0 10

    Specifications

    Thread
    M10
    Thread diameter
    15.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Anchor AB M10-15/65/40
    Unit
    10
