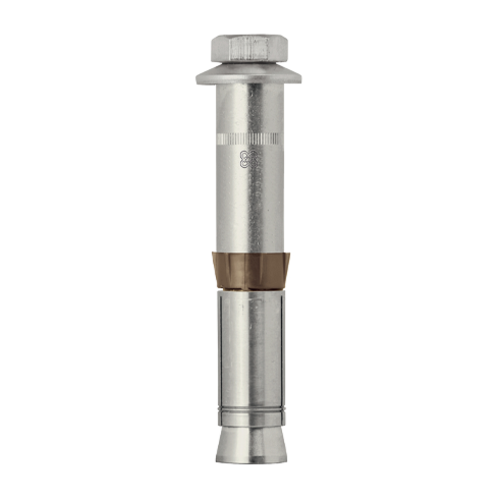

LIEBIG® Anchor AS A4


Specification

  • Applications

    This anchor has several applications including:

    • Machinery
    • Guard rails
    • Base plates
    • Storage and racking
    • Facades
    • Cable trays
    • Lifting systems
    • Gates
    • Steel construction

  • Properties

    • Special lengths available
    • Dome washer for visual confirmation of torque for correct installation
    • Economical high-capacity anchor for a wide range of uses
    • Heavy duty anchor for high loads

  • Technical specifications

    • ETA approved for cracked and non-cracked concrete
    • Hex nut
    • Thread Size: M6 - M16
    • Material: Stainless steel A4

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Length mm Thread Thread diameter mm Hole depth t ≤ mm Clamp thickness mm Effective anchorage depth

    hef mm

    		Unit
    LIEBIG® Anchor AS M6-10/45/5 A4 9650045905 70.0 M6 10.0 60.0 5.0 45.0 50

    Specifications

    Length
    70.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    5.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AS M6-10/45/5 A4
    Unit
    50
    LIEBIG® Anchor AS M6-10/45/15 A4 9650045915 60.0 M6 10.0 80.0 15.0 45.0 50

    Specifications

    Length
    60.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    80.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AS M6-10/45/15 A4
    Unit
    50
    LIEBIG® Anchor AS M12-20/80/15 A4 9650080915 123.0 M12 20.0 95.0 15.0 80.0 10

    Specifications

    Length
    123.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    95.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AS M12-20/80/15 A4
    Unit
    10
    LIEBIG® Anchor AS M12-20/80/40 A4 9650080940 148.0 M12 20.0 95.0 40.0 80.0 10

    Specifications

    Length
    148.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    95.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AS M12-20/80/40 A4
    Unit
    10
    LIEBIG® Anchor AS M8-12/55/15 A4 9652055915 90.0 M8 12.0 70.0 15.0 55.0 25

    Specifications

    Length
    90.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    55.0
    Orderidentifier
    LIEBIG® Anchor AS M8-12/55/15 A4
    Unit
    25
    LIEBIG® Anchor AS M8-12/55/40 A4 9652055940 115.0 M8 12.0 70.0 40.0 55.0 25

    Specifications

    Length
    115.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    55.0
    Orderidentifier
    LIEBIG® Anchor AS M8-12/55/40 A4
    Unit
    25
    LIEBIG® Anchor AS M10-15/65/15 A4 9655065915 105.0 M10 15.0 85.0 15.0 65.0 25

    Specifications

    Length
    105.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AS M10-15/65/15 A4
    Unit
    25
    LIEBIG® Anchor AS M10-15/65/40 A4 9655065940 130.0 M10 15.0 85.0 40.0 65.0 10

    Specifications

    Length
    130.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AS M10-15/65/40 A4
    Unit
    10

    Talk to a LIEBIG Anchoring Consultant

    Contact us for expert specialist guidance

    Our highly experienced team is on hand to offer application support, design & calculation advice, and technical assistance. They will also be able to supply specific product literature and give free access to EJOT ANCHOR FIX®, our anchor dimensioning software.
