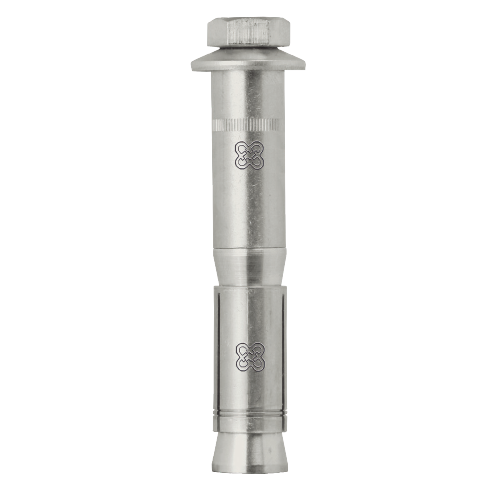

LIEBIG® Safety Bolt S A4

Sicherheitsd?bel S A4

Specification

  • Applications

    This Twin-cone sleeve anchor for high loads has several applications including:

    • Steel construction
    • Cable trays
    • Railing
    • Machines
    • Gates
    • Façades
    • Lifting systems
    • Base plates

  • Properties

    • High-capacity anchor
    • Uniformed expansion of sleeve over entire length
    • Torque indication from domed washer
    • Suitable for Cracked and non-cracked concrete

  • Technical specifications

    • Material: Stainless steel A4
    • High performance double cone expansion anchor
    • Hex bolt head
    • ETA Approved
    • Thread Size: M6 - M16

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Thread diameter mm Clamp thickness mm Unit
    LIEBIG® Safety Bolt S M8-12/55/15 A4 9652055315 12.0 15.0 50

    Specifications

    Thread diameter
    12.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt S M8-12/55/15 A4
    Unit
    50
    LIEBIG® Safety Bolt S M8-12/55/40 A4 9652055340 12.0 40.0 25

    Specifications

    Thread diameter
    12.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Safety Bolt S M8-12/55/40 A4
    Unit
    25
    LIEBIG® Safety Bolt S M10-15/70/15 A4 9655070315 15.0 15.0 25

    Specifications

    Thread diameter
    15.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt S M10-15/70/15 A4
    Unit
    25
    LIEBIG® Safety Bolt S M10-15/70/40 A4 9655070340 15.0 40.0 25

    Specifications

    Thread diameter
    15.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Safety Bolt S M10-15/70/40 A4
    Unit
    25
    LIEBIG® Safety Bolt S M12-20/80/15 A4 9650080315 20.0 15.0 10

    Specifications

    Thread diameter
    20.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt S M12-20/80/15 A4
    Unit
    10
    LIEBIG® Safety Bolt S M12-20/80/40 A4 9650080340 20.0 40.0 10

    Specifications

    Thread diameter
    20.0
    Clamp thickness
    40.0
    Orderidentifier
    LIEBIG® Safety Bolt S M12-20/80/40 A4
    Unit
    10
    LIEBIG® Safety Bolt S M6-10/45/15 A4 9650045315 10.0 15.0 50

    Specifications

    Thread diameter
    10.0
    Clamp thickness
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt S M6-10/45/15 A4
    Unit
    50
