Safety Bolt B
For fixing down of Steel Baseplates, Columns and Structural steel beams

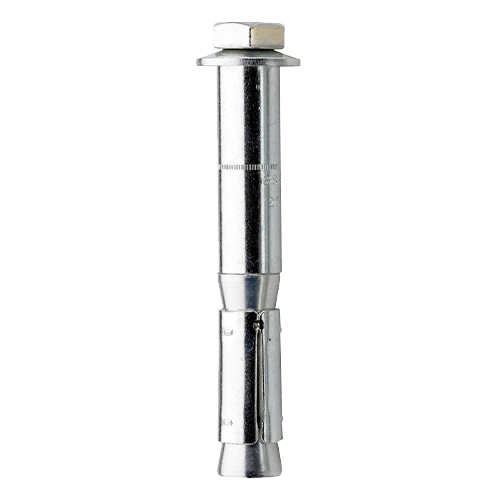

LIEBIG® Safety Bolt S
Specification
-
Applications
This Twin-cone sleeve anchor for high loads has several applications including:
- Steel construction
- Cable trays
- Railing
- Machines
- Gates
- Façades
- Lifting systems
- Base plates
-
Properties
- High-capacity anchor
- Uniformed expansion of sleeve over entire length
- Torque indication from domed washer
- Suitable for Cracked and non-cracked concrete
-
Technical specifications
- Material: Carbon steel zinc plated
- High performance double cone expansion anchor
- Hex bolt head
- ETA Approved
- Thread Size: M6 - M16
- Fire resistance
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Clamping thickness tfix≤ mm |
Thread diameter mm | Unit | |||
|---|---|---|---|---|---|---|---|---|---|
| LIEBIG® Safety Bolt S M6-10/45/5 | 9650045105 | 70.0 | 10.0 | 5.0 | 10.0 | 60.0 | 5.0 | Carbon Steel | 50 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M6-10/45/15 | 9650045115 | 80.0 | 10.0 | 15.0 | 10.0 | 60.0 | 15.0 | Carbon Steel | 50 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M8-12/55/15 | 9652055115 | 90.0 | 12.0 | 15.0 | 12.0 | 70.0 | 15.0 | Carbon Steel | 25 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M8-12/55/40 | 9652055140 | 115.0 | 12.0 | 40.0 | 12.0 | 70.0 | 40.0 | Carbon Steel | 25 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M10-15/70/15 | 9655070115 | 105.0 | 15.0 | 15.0 | 15.0 | 85.0 | 15.0 | Carbon Steel | 25 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M10-15/70/40 | 9655070140 | 130.0 | 15.0 | 40.0 | 15.0 | 85.0 | 40.0 | Carbon Steel | 10 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M12-20/80/15 | 9650080115 | 123.0 | 20.0 | 15.0 | 20.0 | 100.0 | 15.0 | Carbon Steel | 10 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M12-20/80/40 | 9650080140 | 148.0 | 20.0 | 40.0 | 20.0 | 100.0 | 40.0 | Carbon Steel | 10 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M16-25/100/15 | 9655100115 | 155.0 | 25.0 | 15.0 | 25.0 | 125.0 | 15.0 | Carbon Steel | 5 |
Specifications
|
|||||||||
| LIEBIG® Safety Bolt S M16-25/100/40 | 9655100140 | 180.0 | 25.0 | 40.0 | 25.0 | 125.0 | 40.0 | Carbon Steel | 5 |
Specifications
|
CAD
* Thank you for your interest in our CAD data. To be able to use this area, simply log in or please register here.
CAD & more - Your Online Service Area
Unfortunately you currently have no authorization to use "CAD & more".
Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
Grant Access to CAD Data
Unfortunately you currently have no authorization to use "CAD & more".
Apply for access to CAD data.
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
Thank you!
Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
Confirm CAD data renewal
In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
Can not be renewed
Please contact our customer care
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
Can not process your request for CAD
Please contact our customer care
-
For technical questions please contact our Hotline Team +49 2751 529-123
Problems with your access? Mail to: service-industrie@ejot.com
