  6. LIEBIG® Safety Bolt B

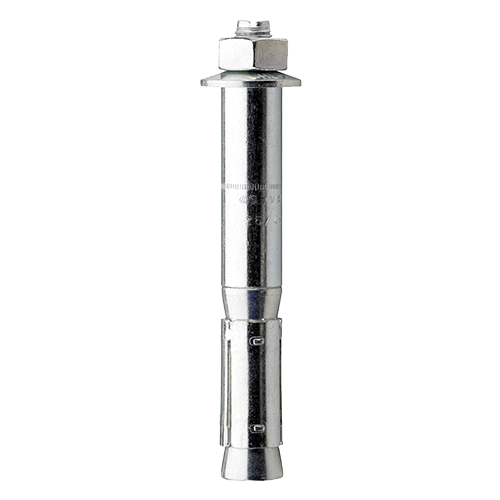

LIEBIG® Safety Bolt B

Sicherheitsd?bel B

Specification

  • Applications

    This Twin-cone sleeve anchor for high loads has several applications including:

    • Steel construction
    • Cable trays
    • Railing
    • Machines
    • Gates
    • Façades
    • Lifting systems
    • Base plates

  • Properties

    • High-capacity anchor for heavy loads
    • Uniformed expansion of sleeve over entire length
    • Torque indication from domed washer
    • Suitable for Cracked and non-cracked concrete
    • Designed to give increased security

  • Technical specifications

    • Double cone expansion anchor
    • ETA approved
    • Hex nut
    • Thread size: M6 - M12

    Additional information

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Length mm ø mm Clamping thickness

    tfix≤ mm

    		Thread diameter mm Unit
    LIEBIG® Safety Bolt B M6-10/45/5 9650045005 70.0 10.0 5.0 10.0 50

    Specifications

    Length
    70.0
    ø
    10.0
    Clamping thickness

    tfix≤

    5.0
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    5.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M6-10/45/5
    Unit
    50
    LIEBIG® Safety Bolt B M6-10/45/15 9650045015 80.0 10.0 15.0 10.0 50

    Specifications

    Length
    80.0
    ø
    10.0
    Clamping thickness

    tfix≤

    15.0
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M6-10/45/15
    Unit
    50
    LIEBIG® Safety Bolt B M8-12/55/15 9652055015 95.0 12.0 15.0 12.0 25

    Specifications

    Length
    95.0
    ø
    12.0
    Clamping thickness

    tfix≤

    15.0
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M8-12/55/15
    Unit
    25
    LIEBIG® Safety Bolt B M8-12/55/40 9652055040 120.0 12.0 40.0 12.0 25

    Specifications

    Length
    120.0
    ø
    12.0
    Clamping thickness

    tfix≤

    40.0
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M8-12/55/40
    Unit
    25
    LIEBIG® Safety Bolt B M10-15/70/15 9655070015 110.0 15.0 15.0 15.0 25

    Specifications

    Length
    110.0
    ø
    15.0
    Clamping thickness

    tfix≤

    15.0
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M10-15/70/15
    Unit
    25
    LIEBIG® Safety Bolt B M10-15/70/40 9655070040 135.0 15.0 40.0 15.0 10

    Specifications

    Length
    135.0
    ø
    15.0
    Clamping thickness

    tfix≤

    40.0
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M10-15/70/40
    Unit
    10
    LIEBIG® Safety Bolt B M12-20/80/40 9650080040 155.0 20.0 40.0 20.0 10

    Specifications

    Length
    155.0
    ø
    20.0
    Clamping thickness

    tfix≤

    40.0
    Thread diameter
    20.0
    Hole depth t ≤
    100.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M12-20/80/40
    Unit
    10
    LIEBIG® Safety Bolt B M12-20/80/15 9650280015 130.0 20.0 15.0 20.0 10

    Specifications

    Length
    130.0
    ø
    20.0
    Clamping thickness

    tfix≤

    15.0
    Thread diameter
    20.0
    Hole depth t ≤
    100.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M12-20/80/15
    Unit
    10
    LIEBIG® Safety Bolt B M16-25/100/5 9655100005 150.0 25.0 5.0 10

    Specifications

    Length
    150.0
    ø
    25.0
    Clamping thickness

    tfix≤

    5.0
    Thread diameter
    Hole depth t ≤
    125.0
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M16-25/100/5
    Unit
    10
    LIEBIG® Safety Bolt B M16-25/100/15 9655100015 160.0 25.0 15.0 25.0 5

    Specifications

    Length
    160.0
    ø
    25.0
    Clamping thickness

    tfix≤

    15.0
    Thread diameter
    25.0
    Hole depth t ≤
    125.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® Safety Bolt B M16-25/100/15
    Unit
    5
