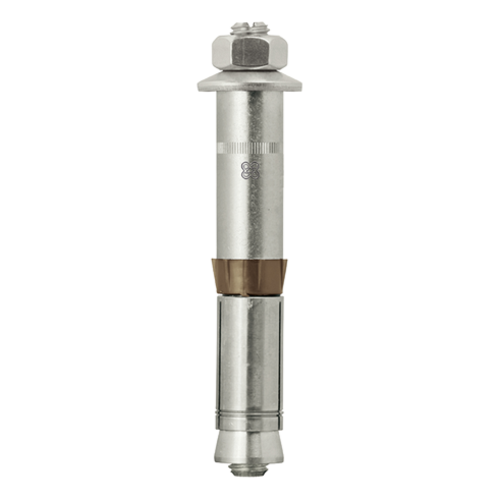

LIEBIG® Anchor AB A4


Specification

  • Applications

    This anchor has several applications including:

    • Machinery
    • Guard rails
    • Base plates
    • Storage and racking
    • Facades
    • Cable trays
    • Lifting systems
    • Gates
    • Steel construction

  • Properties

    • Special lengths available
    • Dome washer for visual confirmation of torque for correct installation
    • Economical high-capacity anchor for a wide range of uses
    • Heavy duty anchor for high loads

  • Technical specifications

    • ETA approved for cracked and non-cracked concrete
    • Hex nut
    • Thread Size: M6 - M16
    • Material: Stainless steel A4

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Length mm Thread Thread diameter mm Hole depth t ≤ mm Clamp thickness mm Effective anchorage depth

    hef mm

    		Unit
    LIEBIG® Anchor AB M6-10/45/5 A4 9650045805 70.0 M6 10.0 60.0 5.0 45.0 50

    Specifications

    Length
    70.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    5.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AB M6-10/45/5 A4
    Unit
    50
    LIEBIG® Anchor AB M6-10/45/15 A4 9650045815 80.0 M6 10.0 60.0 15.0 45.0 50

    Specifications

    Length
    80.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AB M6-10/45/15 A4
    Unit
    50
    LIEBIG® Anchor AB M12-20/80/15 A4 9650080815 130.0 M12 20.0 95.0 15.0 80.0 10

    Specifications

    Length
    130.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    95.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AB M12-20/80/15 A4
    Unit
    10
    LIEBIG® Anchor AB M12-20/80/40 A4 9650080840 155.0 M12 20.0 95.0 40.0 80.0 10

    Specifications

    Length
    155.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    95.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AB M12-20/80/40 A4
    Unit
    10
    LIEBIG® Anchor AB M8-12/55/15 A4 9652055815 95.0 M8 12.0 70.0 15.0 55.0 25

    Specifications

    Length
    95.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    55.0
    Orderidentifier
    LIEBIG® Anchor AB M8-12/55/15 A4
    Unit
    25
    LIEBIG® Anchor AB M8-12/55/40 A4 9652055840 120.0 M8 12.0 70.0 40.0 55.0 25

    Specifications

    Length
    120.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    55.0
    Orderidentifier
    LIEBIG® Anchor AB M8-12/55/40 A4
    Unit
    25
    LIEBIG® Anchor AB M10-15/65/15 A4 9655065815 110.0 M10 15.0 85.0 15.0 65.0 25

    Specifications

    Length
    110.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AB M10-15/65/15 A4
    Unit
    25
    LIEBIG® Anchor AB M10-15/65/40 A4 9655065840 135.0 M10 15.0 85.0 40.0 65.0 10

    Specifications

    Length
    135.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AB M10-15/65/40 A4
    Unit
    10
    LIEBIG® Anchor AB M16-25/100/15 A4 9655100815 160.0 M16 25.0 125.0 15.0 100.0 10

    Specifications

    Length
    160.0
    Thread
    M16
    Thread diameter
    25.0
    Hole depth t ≤
    125.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    100.0
    Orderidentifier
    LIEBIG® Anchor AB M16-25/100/15 A4
    Unit
    10
    LIEBIG® Anchor AB M16-25/100/40 A4 9655100840 185.0 M16 25.0 125.0 40.0 100.0 10

    Specifications

    Length
    185.0
    Thread
    M16
    Thread diameter
    25.0
    Hole depth t ≤
    125.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    100.0
    Orderidentifier
    LIEBIG® Anchor AB M16-25/100/40 A4
    Unit
    10
