EJOT® ND K

Specification

  • Applications

    Speed plug for light-duty fixings:

    • Substructures
    • Cabinets, Skirting boards. lath
    • Cable racks, cable clips
    • Pipe supports

    Suitable for:

    • Concrete
    • Solid clay brick
    • Vertically perforated brick
  • Properties

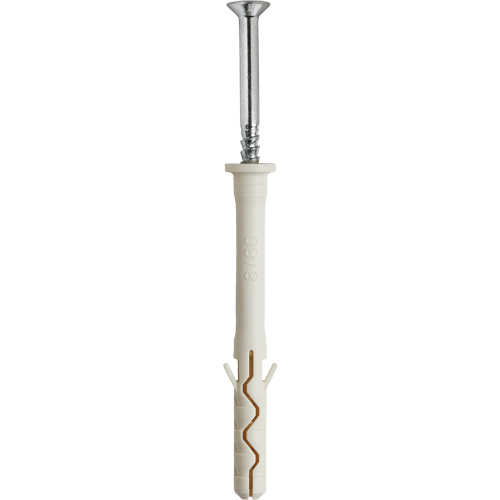

    • Ready-to-install nylon collar flange plug with a nail made of zinc-plated steel (GVZ) / Stainless steel
    • Drive-in installation
    • Nail head with Pozidriv recess for removal or adjustment of the anchor
    • The plug collars serve as plastic insulating washers and thus prevent contact corrosion
    • GVZ for dry indoor areas
  • Technical specifications

    • Drive: Z2 cross recess

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Sleeve Diameter mm Embedment mm Clamping thickness

    tfix≤ mm

    Screw-in-/hammer-inanchor Material Length mm Unit Availability * Price / 100
    ND-K 6 x 40 V 9650075679 6.0 30.0 40.0 Hammer-in anchor Carbon Steel 40.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    6.0
    Embedment
    30.0
    Clamping thickness

    tfix

    40.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Material
    Carbon Steel
    Length
    40.0
    Availability
    Orderidentifier
    ND-K 6 x 40 V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    ND-K 6/60 V 9650075682 6.0 30.0 40.0 Hammer-in anchor Carbon Steel 60.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    6.0
    Embedment
    30.0
    Clamping thickness

    tfix

    40.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Material
    Carbon Steel
    Length
    60.0
    Availability
    Orderidentifier
    ND-K 6/60 V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    ND-K 6/80 V 9650075683 6.0 30.0 40.0 Hammer-in anchor Carbon Steel 80.0 100 Please login to check the price Please login to check the price

    Specifications

    Sleeve Diameter
    6.0
    Embedment
    30.0
    Clamping thickness

    tfix

    40.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Material
    Carbon Steel
    Length
    80.0
    Availability
    Orderidentifier
    ND-K 6/80 V
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price

    Delivery status:

    • Stock
    • No Stock
