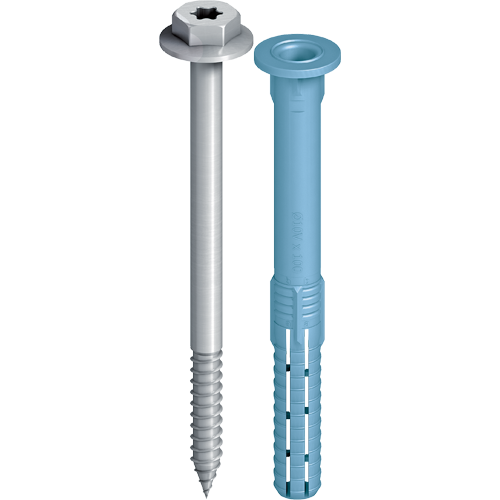

EJOT® SDF KB 10V
Specification
-
Applications
- For the installation of metal components to solid concrete, blockwork and brick
-
Properties
- Available in zinc-plated carbon steel or A4 Stainless steel set screw, both used with a nylon plug
-
Technical specifications
- Drive: 13mm Hex One Piece Socket or Torx 40.
- Anchor with an embedment depth of 40 mm in concrete
- Embedment in masonry 50 mm
- 10mm pilot hole
- This product has a European technical approval (ETA)
Additional information
When choosing your product below, please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order, including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Sleeve Diameter mm | Screw-in-/hammer-inanchor | Drive | Clamping thickness (masonry) B ≥ mm | Material | Length mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SDF KB 10V x 50V | 8581050450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 0.0 | Carbon Steel | 50.0 | 100 | |||
| SDF KB 10V x 60V | 8581060450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 10.0 | Carbon Steel | 60.0 | 100 | |||
| SDF KB 10V x 70V | 8581070450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 20.0 | Carbon Steel | 70.0 | 100 | |||
| SDF KB 10V x 80V | 8581080450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 30.0 | Carbon Steel | 80.0 | 100 | |||
| SDF KB 10V x 100V | 8581100450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 50.0 | Carbon Steel | 100.0 | 100 | |||
| SDF KB 10V x 120V | 8581120450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 70.0 | Carbon Steel | 120.0 | 100 | |||
| SDF KB 10V x 140V | 8581140450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 90.0 | Carbon Steel | 140.0 | 100 | |||
| SDF KB 10V x 160V | 8581160450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 110.0 | Carbon Steel | 160.0 | 100 | |||
| SDF KB 10V x 180V | 8581180450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 130.0 | Carbon Steel | 180.0 | 100 | |||
| SDF KB 10V x 200V | 8581200450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 150.0 | Carbon Steel | 200.0 | 100 | |||
| SDF KB 10V x 220V | 8581220450 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 170.0 | Carbon Steel | 220.0 | 100 | |||
| SDF KB 10V x 50E | 8581050650 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 0.0 | Stainless Steel | 50.0 | 100 | |||
| SDF KB 10V x 60E | 8581060650 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 10.0 | Stainless Steel | 60.0 | 100 | |||
| SDF KB 10V x 70E | 8581070650 | 10.0 | Screw anchor | Hexagon 13mm AF and TORX® T40 | 20.0 | Stainless Steel | 70.0 | 100 | |||
