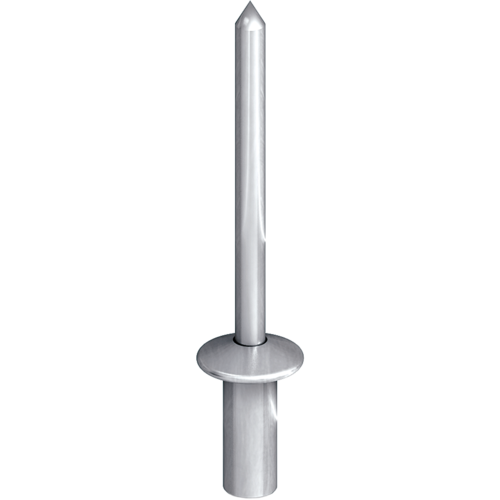

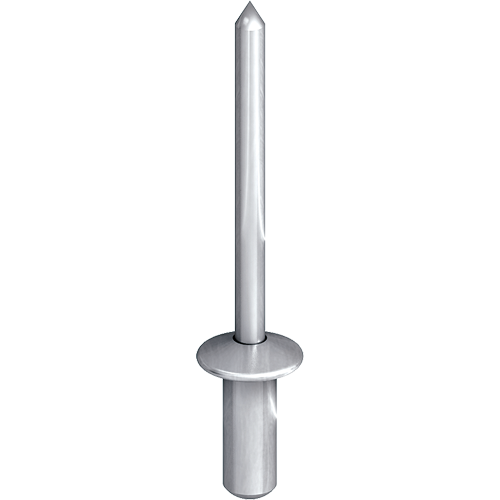

EJOT® Closed-end rivet ECORIV® aluminium/stainless steel

Specification

  • Applications

    • For aluminium or steel sections with a combination thickness within the specified grip range
  • Properties

    • Rivet body made of aluminium (Al) 5019 485-2
    • Mandrel made of stainless steel (E) 1.4301 A2
    • Captive locked
    • ETA-22/0641
  • Technical specifications

    • For a water-tight seal a sealing ring can be used
    • The sealing ring option is the full code with a (W) at the end

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit Availability * Price / 100
    Closed-end rivet ECORIV AL/E 4.8x8.0 9334403000 4.8 8.0 4.9 0.5 - 3.5 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    8.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    0.5 - 3.5
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x8.0
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Closed-end rivet ECORIV AL/E 4.8x9.5 9334404000 4.8 9.5 4.9 3.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    9.5
    Pilot Hole Ø
    4.9
    Clamp thickness
    3.0 - 5.0
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x9.5
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Closed-end rivet ECORIV AL/E 4.8x12.5 9334405000 4.8 12.5 4.9 4.5 - 6.5 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    12.5
    Pilot Hole Ø
    4.9
    Clamp thickness
    4.5 - 6.5
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x12.5
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Closed-end rivet ECORIV AL/E 4.8x14.0 9334406000 4.8 14.0 4.9 7.5 - 9.5 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    14.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    7.5 - 9.5
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x14.0
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    Closed-end rivet ECORIV AL/E 4.8x16.0 9334408000 4.8 16.0 4.9 9.0 - 11.0 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    16.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    9.0 - 11.0
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x16.0
    Unit
    * Price / 100
    Please login to check the price Please login to check the price
    Closed-end rivet ECORIV AL/E 4.8x21.5 9334411000 4.8 21.0 4.9 12.5 - 16.0 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Length
    21.0
    Pilot Hole Ø
    4.9
    Clamp thickness
    12.5 - 16.0
    Availability
    Orderidentifier
    Closed-end rivet ECORIV AL/E 4.8x21.5
    Unit
    * Price / 100
    Please login to check the price Please login to check the price
