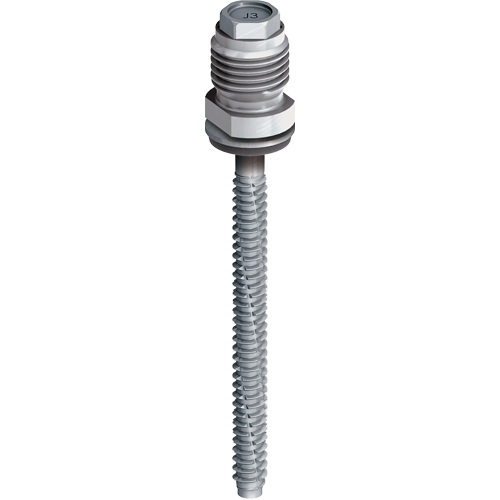

EJOT® scaffolding anchor JZ3-GU-6.3

Zoom

Specification

Applications
- For installation into steel ≥ 2 mm
- For aluminium substructure ≥ 3 mm
Properties
- Threaded sleeve and self-tapping screw made of A2 stainless steel
Technical specifications

Drive: Hexagon A/F3/8
Sealing washer: E16/2
High thread: M14x1.5
Note: consisting of EJOT® GU threaded sleeve and EJOT® self-tapping screw JZ3

Downloads

English

EJOT-PDS-JZ3-GU-6.3.pdf

English (UK)

JZ3-GU-6_3_datasheet_2018_en_GB.pdf

* To see prices, please log in here.

Thread Diameter mm	Effective length scaffolding anchor mm	Length of self-tapping screw mm	Material	Unit	Article Number	Availability	Orderidentifier	* Price / 100
6.3	15.0	38.0	Stainless Steel	100	9401111311		JZ3-GU-6.3 x 15 E16
6.3	30.0	50.0	Stainless Steel	100	9401211311		JZ3-GU-6.3 x 30 E16
6.3	45.0	64.0	Stainless Steel	100	9401511311		JZ3-GU-6.3 x 45 E16
6.3	70.0	90.0	Stainless Steel	100	9401911311		JZ3-GU-6.3 x 70 E16
6.3	80.0	100.0	Stainless Steel	100	9402011311		JZ3-GU-6.3 x 80 E16
6.3	95.0	115.0	Stainless Steel	100	9402111311		JZ3-GU-6.3 x 95 E16
6.3	105.0	125.0	Stainless Steel	100	9402211311		JZ3-GU-6.3 x 105 E16
6.3	130.0	150.0	Stainless Steel	100	9402411311		JZ3-GU-6.3 x 130 E16
6.3	155.0	175.0	Stainless Steel	100	9402611311		JZ3-GU-6.3 x 155 E16
6.3	180.0	200.0	Stainless Steel	100	9402811314		JZ3-GU-6.3 x 180 E16

Delivery status:

Stock
No Stock
