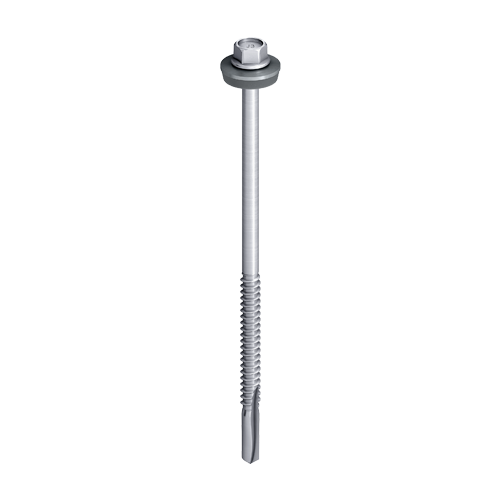

EJOT® self-drilling screw JT3 12 5.5

Zoom

JT3-12-5_5_nw_2016

Specification

Applications
- Profiled roofing and cladding sheets to hot rolled steel sections
- Aluminium roofing and cladding sheets to hot rolled steel section
Properties
- A2 Austenitic Stainless Steel fastener with Carbon steel drill point
- Available unwashered
Technical specifications
- Drive: 8mm clip hex one piece socket
- Steel sections from 4.0 to 12.0mm in thickness

Downloads

FM approved - certificate of compliance 1.pdf 91 KB
JT3_12_range_2017_en_GB.pdf 462 KB
ETA-10/0200.pdf 28 MB
DoP ETA-10/0200 JT3.zip 7 MB
DoP ETA-13/0177 JT3.zip 1 MB

When choosing your product below, please ensure to select the relevant fixing and washer suitable to your application.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Length mm	Ø Sealing Washer mm	Thread Diameter mm	Clamp thickness mm			Unit	Availability	* Price / 100
JT3 12 5.5 x 40	7380417309	40.0	0 - none	5.5	4.0 - 14.0	12.0	Hexagon 8mm AF	100
Specifications Length 40.0 Ø Sealing Washer mm 0 - none Thread Diameter 5.5 Clamp thickness 4.0 - 14.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 40 Unit 100 * Price / 100
JT3 12 5.5 x 40 S16	9900030386	40.0	16	5.5	4.0 - 12.0	12.0	Hexagon 8mm AF	100
Specifications Length 40.0 Ø Sealing Washer mm 16 Thread Diameter 5.5 Clamp thickness 4.0 - 12.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 40 S16 Unit 100 * Price / 100
JT3 12 5.5 x 40 S19	3597612311	40.0	19	5.5	4.0 - 12.0	12.0	Hexagon 8mm AF	100
Specifications Length 40.0 Ø Sealing Washer mm 19 Thread Diameter 5.5 Clamp thickness 4.0 - 12.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 40 S19 Unit 100 * Price / 100
JT3 12 5.5 x 40 A29	3595616311	40.0	29	5.5	4.0 - 11.0	12.0	Hexagon 8mm AF	100
Specifications Length 40.0 Ø Sealing Washer mm 29 Thread Diameter 5.5 Clamp thickness 4.0 - 11.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 40 A29 Unit 100 * Price / 100
JT3-12-5,5 x 67	7380529309	67.0	0 - none	5.5	4.0 - 41.0	12.0	Hexagon 8mm AF	100
Specifications Length 67.0 Ø Sealing Washer mm 0 - none Thread Diameter 5.5 Clamp thickness 4.0 - 41.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3-12-5,5 x 67 Unit 100 * Price / 100
JT3 12 5.5 x 67 S16	3593811311	67.0	16	5.5	4.0 - 39.0	12.0	Hexagon 8mm AF	100
Specifications Length 67.0 Ø Sealing Washer mm 16 Thread Diameter 5.5 Clamp thickness 4.0 - 39.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 67 S16 Unit 100 * Price / 100
JT3 12 5.5 x 67 S19	3593812311	67.0	19	5.5	4.0 - 39.0	12.0	Hexagon 8mm AF	100
Specifications Length 67.0 Ø Sealing Washer mm 19 Thread Diameter 5.5 Clamp thickness 4.0 - 39.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 67 S19 Unit 100 * Price / 100
JT3 12 5.5 x 67 A29	9900030515	67.0	29	5.5	4.0 - 38.0	12.0	Hexagon 8mm AF	100
Specifications Length 67.0 Ø Sealing Washer mm 29 Thread Diameter 5.5 Clamp thickness 4.0 - 38.0 Maximum drilling capacity 12.0 Drive Hexagon 8mm AF Availability Orderidentifier JT3 12 5.5 x 67 A29 Unit 100 * Price / 100

Delivery status:

Stock
No Stock
