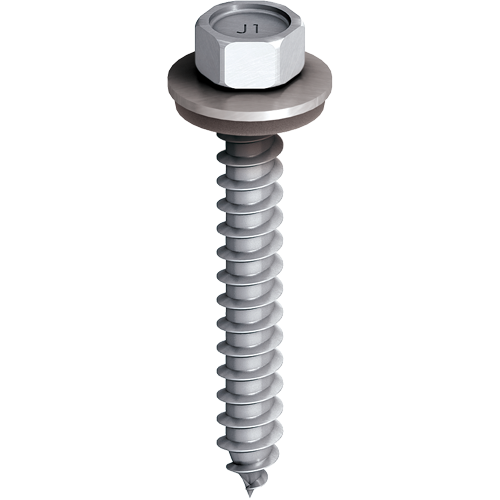

EJOT® JA1 6.5

Specification

Applications
- Side lap stitching of profiled steel sheet in highly corosive environments
- Fixing profiled steel sheet to timber substructures in highly corrosive environments
Properties
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Highest corrosion protection class
Technical specifications
- Drive: 3/8" Magnetic Hex One Piece Socket
- Material: Stainless steel – 1.4529

Downloads

Read & Download Roofing and Cladding Brochure

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	ø mm	Ø Sealing Washer mm	Length mm	Clamp thickness mm	Unit
JA1 6.5 x 22	3113200319	6.5	0 - none	22.0	0.5 - 14.0	100
Specifications ø 6.5 Ø Sealing Washer mm 0 - none Length 22.0 Clamp thickness 0.5 - 14.0 Availability Orderidentifier JA1 6.5 x 22 Unit 100 * Price / 100
JA1 6.5 x 22 S16	3113211319	6.5	16	22.0	0.5 - 12.0	100
Specifications ø 6.5 Ø Sealing Washer mm 16 Length 22.0 Clamp thickness 0.5 - 12.0 Availability Orderidentifier JA1 6.5 x 22 S16 Unit 100 * Price / 100
JA1 6.5 x 22 A29	9900101007	6.5	29	22.0	0.5 - 11.0	100
Specifications ø 6.5 Ø Sealing Washer mm 29 Length 22.0 Clamp thickness 0.5 - 11.0 Availability Orderidentifier JA1 6.5 x 22 A29 Unit 100 * Price / 100
JA1 6.5 x 38	3113400319	6.5	0 - none	38.0	0.5 - 30.0	100
Specifications ø 6.5 Ø Sealing Washer mm 0 - none Length 38.0 Clamp thickness 0.5 - 30.0 Availability Orderidentifier JA1 6.5 x 38 Unit 100 * Price / 100
JA1 6.5 x 38 S16	3113411319	6.5	16	38.0	0.5 - 28.0	100
Specifications ø 6.5 Ø Sealing Washer mm 16 Length 38.0 Clamp thickness 0.5 - 28.0 Availability Orderidentifier JA1 6.5 x 38 S16 Unit 100 * Price / 100
JA1 6.5 x 38 A29	9900103869	6.5	29	38.0	0.5 - 27.0	100
Specifications ø 6.5 Ø Sealing Washer mm 29 Length 38.0 Clamp thickness 0.5 - 27.0 Availability Orderidentifier JA1 6.5 x 38 A29 Unit 100 * Price / 100
JA1 6.5 x 64	3113800319	6.5	0 - none	64.0	0.5 - 56.0	100
Specifications ø 6.5 Ø Sealing Washer mm 0 - none Length 64.0 Clamp thickness 0.5 - 56.0 Availability Orderidentifier JA1 6.5 x 64 Unit 100 * Price / 100
JA1 6.5 x 64 S16	3113811319	6.5	16	64.0	0.5 - 54.0	100
Specifications ø 6.5 Ø Sealing Washer mm 16 Length 64.0 Clamp thickness 0.5 - 54.0 Availability Orderidentifier JA1 6.5 x 64 S16 Unit 100 * Price / 100
JA1 6.5 x 64 A29	9900101008	6.5	29	64.0	0.5 - 53.0	100
Specifications ø 6.5 Ø Sealing Washer mm 29 Length 64.0 Clamp thickness 0.5 - 53.0 Availability Orderidentifier JA1 6.5 x 64 A29 Unit 100 * Price / 100
JA1 6.5 x 115	3114300319	6.5	0 - none	115.0	40.0 - 111.0	100
Specifications ø 6.5 Ø Sealing Washer mm 0 - none Length 115.0 Clamp thickness 40.0 - 111.0 Availability Orderidentifier JA1 6.5 x 115 Unit 100 * Price / 100
JA1 6.5 x 115 S16	9900103118	6.5	16	115.0	40.0 - 102.0	100
Specifications ø 6.5 Ø Sealing Washer mm 16 Length 115.0 Clamp thickness 40.0 - 102.0 Availability Orderidentifier JA1 6.5 x 115 S16 Unit 100 * Price / 100
JA1 6.5 x 115 A29	9900103871	6.5	29	115.0	40.0 - 101.0	100
Specifications ø 6.5 Ø Sealing Washer mm 29 Length 115.0 Clamp thickness 40.0 - 101.0 Availability Orderidentifier JA1 6.5 x 115 A29 Unit 100 * Price / 100
