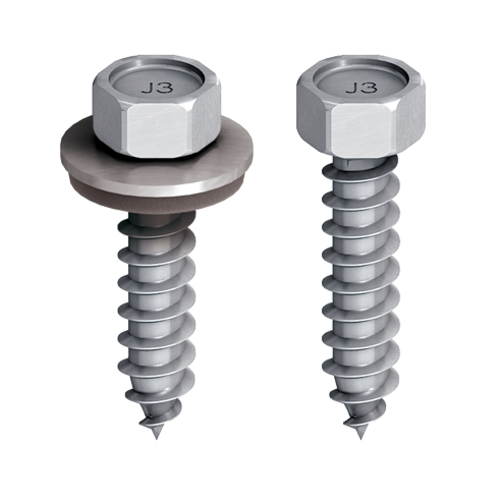

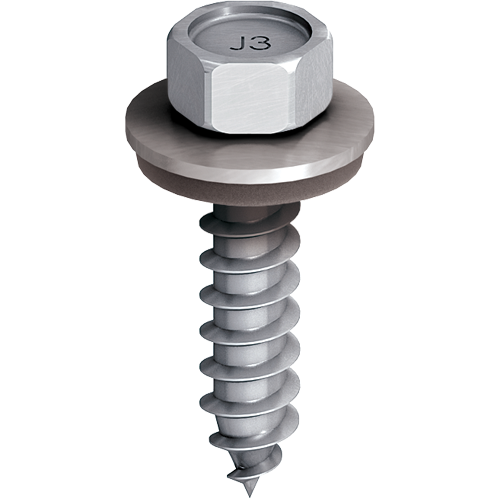

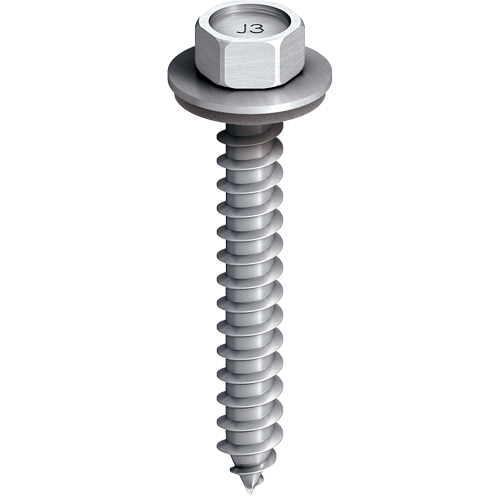

EJOT® self-tapping screw JA3 6.5

Zoom

Specification

Applications
- Roofing or cladding sheets
- To Steel sections, aluminium sections and timber
Properties
- Fully A2 Austenitic Stainless Steel
- Available unwashered
Technical specifications
- Drive: 3/8" magnetic hex one piece socket
- Steel sections upto 2.0mm in thickness
- Aluminium sections upto 3.0mm in thickness
- Timber

Downloads

English

JA3_range.pdf 71 KB
EJOT_Data_Sheet_JA3-6.5.pdf 670 KB
EJOT_Data_Sheet_JA3-6.5_engl.pdf 670 KB
Assessment ETA-10-0200 (EN).pdf 74 MB
ETA-13-0177_Fastening-screws-for-sandwich-panels_20130426-20180426.pdf 2 MB
EJOT_Product-data-sheet_JA3-6.5.pdf 5 MB

English (UK)

When choosing your product below, please ensure to select the relevant fixing and washer suitable to your application.

* To see prices, please log in here.

Length mm	Thread Diameter mm	Clamp thickness mm	Unit	Article Number	Orderidentifier
19.0	6.5	0.5 - 11.0	100	3013100311	JA3 6.5 x 19
19.0	6.5	0.5 - 9.0	100	3113111311	JA3 6.5 x 19 S16
19.0	6.5	0.5 - 9.0	100	3113112311	JA3 6.5 x 19 S19
19.0	6.5	0.5 - 8.0	100	9900103701	JA3 6.5 x 19 A29
25.0	6.5	0.5 - 17.0	100	3013200311	JA3 6.5 x 25
25.0	6.5	0.5 - 15.0	100	3113211311	JA3 6.5 x 25 S16
25.0	6.5	0.5 - 15.0	100	3113212311	JA3 6.5 x 25 S19
25.0	6.5	0.5 - 14.0	100	9900100106	JA3 6.5 x 25 A29
32.0	6.5	0.5 - 24.0	100	3013300311	JA3 6.5 x 32
32.0	6.5	0.5 - 22.0	100	3113311311	JA3 6.5 x 32 S16
32.0	6.5	0.5 - 22.0	100	3113312311	JA3 6.5 x 32 S19
32.0	6.5	0.5 - 21.0	100	9900103702	JA3 6.5 x 32 A29
38.0	6.5	0.5 - 30.0	100	3013400311	JA3 6.5 x 38
38.0	6.5	0.5 - 28.0	100	3113411311	JA3 6.5 x 38 S16
38.0	6.5	0.5 - 28.0	100	3113412311	JA3 6.5 x 38 S19
38.0	6.5	0.5 - 27.0	100	9900103705	JA3 6.5 x 38 A29
50.0	6.5	0.5 - 42.0	100	3013600311	JA3 6.5 x 50
50.0	6.5	0.5 - 40.0	100	3113611311	JA3 6.5 x 50 S16
50.0	6.5	0.5 - 40.0	100	3113612311	JA3 6.5 x 50 S19
50.0	6.5	0.5 - 39.0	100	9900030759	JA3 6.5 x 50 A29
64.0	6.5	0.5 - 56.0	100	3013800311	JA3 6.5 x 64
64.0	6.5	0.5 - 54.0	100	9900000151	JA3 6.5 x 64 S16
64.0	6.5	0.5 - 54.0	100	9900030385	JA3 6.5 x 64 S19
64.0	6.5	0.5 - 53.0	100	9900103703	JA3 6.5 x 64 A29
75.0	6.5	0.5 - 67.0	100	3013900311	JA3 6.5 x 75
75.0	6.5	0.0 - 25.0	100	3113911311	JA3 6.5 x 75 S16
75.0	6.5	0.5 - 65.0	100	9900102632	JA3 6.5 x 75 S19
75.0	6.5	0.5 - 64.0	100	9900102793	JA3 6.5 x 75 A29
90.0	6.5	12.0 - 82.0	100	3014100311	JA3 6.5 x 90
90.0	6.5	12.0 - 80.0	100	9900102373	JA3 6.5 x 90 S16
90.0	6.5	12.0 - 80.0	100	3114112311	JA3 6.5 x 90 S19
90.0	6.5	12.0 - 79.0	100	9900103704	JA3 6.5 x 90 A29
100.0	6.5	22.0 - 92.0	100	3014200311	JA3 6.5 x 100
100.0	6.5	22.0 - 90.0	100	9900030390	JA3 6.5 x 100 S16
100.0	6.5	22.0 - 90.0	100	9900100443	JA3 6.5 x 100 S19
100.0	6.5	22.0 - 89.0	100	9900103706	JA3 6.5 x 100 A29
115.0	6.5	37.0 - 107.0	100	3014300311	JA3 6.5 x 115
115.0	6.5	37.0 - 65.0	100	3114311311	JA3 6.5 x 115 S16
115.0	6.5	37.0 - 105.0	100	3114312311	JA3 6.5 x 115 S19
115.0	6.5	37.0 - 104.0	100	9900103369	JA3 6.5 x 115 A29
125.0	6.5	47.0 - 117.0	100	3014400311	JA3 6.5 x 125
125.0	6.5	47.0 - 115.0	100	9900030195	JA3 6.5 x 125 S16
125.0	6.5	47.0 - 115.0	100	9900101957	JA3 6.5 x 125 S19
125.0	6.5	47.0 - 114.0	100	9900103707	JA3 6.5 x 125 A29
150.0	6.5	72.0 - 142.0	100	3014600311	JA3 6.5 x 150
150.0	6.5	70.0 - 100.0	100	3114611311	JA3 6.5 x 150 S16
150.0	6.5	72.0 - 140.0	100	3114612311	JA3 6.5 x 150 S19
175.0	6.5	97.0 - 167.0	100	3014700311	JA3 6.5 x 175
175.0	6.5	97.0 - 165.0	100	9900101599	JA3 6.5 x 175 S16
175.0	6.5	97.0 - 165.0	100	9900102065	JA3 6.5 x 175 S19
175.0	6.5	97.0 - 164.0	100	9900103708	JA3 6.5 x 175 A29
200.0	6.5	122.0 - 192.0	100	3014800311	JA3 6.5 x 200
200.0	6.5	115.0 - 150.0	100	3114811311	JA3 6.5 x 200 S16
200.0	6.5	122.0 - 190.0	100	3114812311	JA3 6.5 x 200 S19
200.0	6.5	122.0 - 189.0	100	9900103709	JA3 6.5 x 200 A29
230.0	6.5	152.0 - 222.0	100	3014900311	JA3 6.5 x 230
230.0	6.5	140.0 - 180.0	100	3114911311	JA3 6.5 x 230 S16
230.0	6.5	152.0 - 220.0	100	3114912311	JA3 6.5 x 230 S19
230.0	6.5	152.0 - 219.0	100	9900103710	JA3 6.5 x 230 A29

Delivery status:

Stock
No Stock
