Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

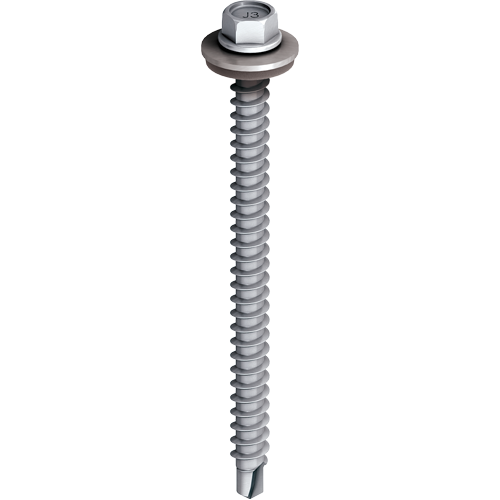

EJOT® JT3 2 6.5
Specification
-
Applications
- Suitable for roofing or cladding steel or aluminium sheets to timber steel sections up to 2mm in thickness
-
Properties

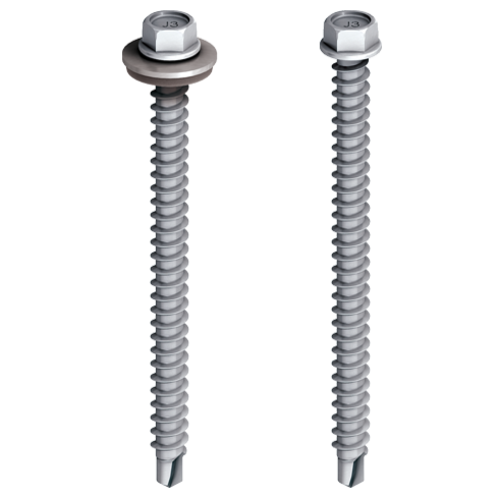

- Available unwashered
- The mechanical performance is dependent on the embedment and grade of timber
-
Technical specifications
- Drive: 8mm clip hex one piece socket
- Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Ø Sealing Washer mm | Unit | Availability | * Price / | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| JT3-2-6.5x40-E16 PU100 | 6594011321 | 40.0 | 6.5 | 16 | 0.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 50 | 7380335301 | 50.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 50 S16 | 3598811321 | 50.0 | 6.5 | 16 | 0.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3 2 6.5 x 50 S19 | 3598812321 | 50.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 50 S22 | 3598813321 | 50.0 | 6.5 | 22 | 0.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3-2-6.5x50-E22 PU100 | 6598813321 | 50.0 | 6.5 | 22 | 2.0 | Hexagon 8mm AF | |||||
| JT3 2 6.5 x 65 | 7380524301 | 65.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 65 S16 | 3598911321 | 65.0 | 6.5 | 16 | 0.0 - 15.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3-2-6.5x65-E16 PU100 | 6598911321 | 65.0 | 6.5 | 16 | 0.0 - 15.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 65 S16 | 9900100359 | 65.0 | 6.5 | 16 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 65 S19 | 3598912321 | 65.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3-2-6.5x65-E22 PU100 | 6598913321 | 65.0 | 6.5 | 22 | 0.0 - 15.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 80 | 7380553301 | 80.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 80 S16 | 3598011321 | 80.0 | 6.5 | 16 | 0.0 - 30.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3-2-6.5x80-E19 | 3598012321 | 80.0 | 6.5 | 19 | 0.0 - 30.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 80 S19 | 9900102232 | 80.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 100 | 7380538301 | 100.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 100 S16 | 9900030015 | 100.0 | 6.5 | 16 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 100 S22 | 3598113321 | 100.0 | 6.5 | 22 | 16.0 - 50.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 120 | 7380472301 | 120.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 120 S16 | 9900100771 | 120.0 | 6.5 | 16 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 120 S19 | 3598312321 | 120.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 120 S22 | 3598313321 | 120.0 | 6.5 | 22 | 36.0 - 70.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 140 | 7380473301 | 140.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 140 S16 | 3598511321 | 140.0 | 6.5 | 16 | 56.0 - 90.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3 2 6.5 x 140 S19 | 3598512321 | 140.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 160 | 7380474301 | 160.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 160 S16 | 3598711321 | 160.0 | 6.5 | 16 | 76.0 - 110.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3 2 6.5 x 160 S19 | 3598712321 | 160.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 180 | 7380541301 | 180.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 180 S16 | 3598211321 | 180.0 | 6.5 | 16 | 96.0 - 130.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3 2 6.5 x 180 S19 | 3598212321 | 180.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 200 | 7380542301 | 200.0 | 6.5 | 0 - none | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 200 S16 | 3599011321 | 200.0 | 6.5 | 16 | 116.0 - 150.0 | 2.0 | Hexagon 8mm AF | 100 | |||
| JT3 2 6.5 x 200 S19 | 3599012321 | 200.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | 100 | ||||
| JT3 2 6.5 x 220 S22 | 3599113321 | 220.0 | 6.5 | 22 | 136.0 - 170.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3 2 6.5 x 240 S16 | 3599211321 | 240.0 | 6.5 | 16 | 156.0 - 190.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3-2-6.5x260-E22 | 3599313321 | 260.0 | 6.5 | 22 | 176.0 - 210.0 | 2.0 | Hexagon 8mm AF | ||||
| JT3-2-6,5x280 E19 | 3599566321 | 280.0 | 6.5 | 19 | 2.0 | Hexagon 8mm AF | |||||
| JT3-2-6.5x300-E16 | 3599611321 | 300.0 | 6.5 | 16 | 216.0 - 250.0 | 2.0 | Hexagon 8mm AF | ||||
