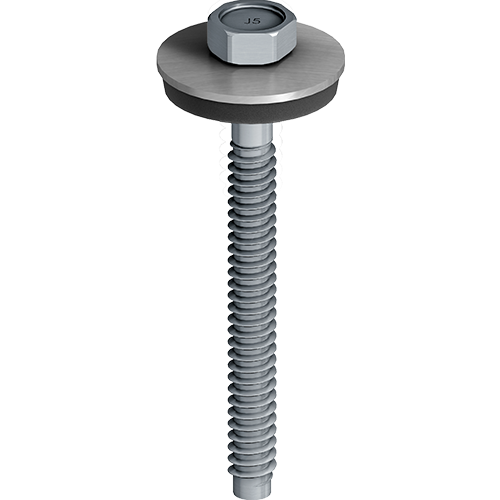

EJOT® JZ5 8.0
Specification
-
Applications
- Fastening profiled steel sheet and sandwich panel to steel substrate up to S 355 (St 52)
- Suitable for replacing screws with diameter 5.5 and 6.3 mm
-
Properties
- Stainless steel sealing washer
- Pre-assembled sealing washer
-
Technical specifications
- Screw diameter: 8.0 mm
- Sealing washer diameter 22 mm
- Hexagon drive
- Installation rotation speed: max. 400 rpm
- Material: A2 stainless steel with hardened steel dog point
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|
| JZ5 8.0 x 60 E22 | 3190653311 | 60.0 | 8.0 | 0.0 - 43.0 | 100 | |||
| JZ5 8.0 x 80 E22 | 3190853311 | 80.0 | 8.0 | 16.0 - 63.0 | 100 | |||
| JZ5 8.0 x 100 E22 | 3191053311 | 100.0 | 8.0 | 36.0 - 83.0 | 100 | |||
| JZ5 8.0 x 150 E22 | 3191553311 | 150.0 | 8.0 | 86.0 - 133.0 | 100 | |||
Delivery status:
- Stock
- No Stock
