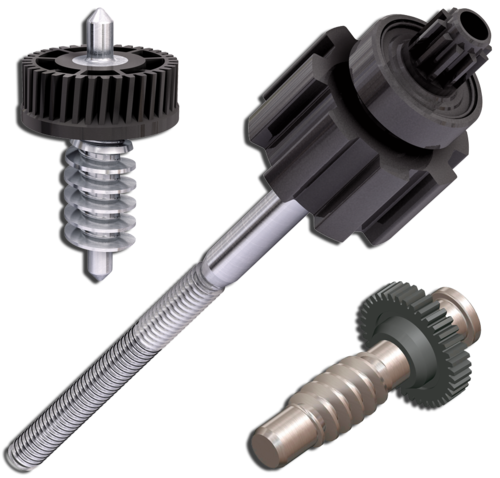

EJOSYST® TORQtec

Specification

  • Customised functional assemblies for precise motion conversion

    TORQtec® stands for individually developed functional assemblies, spindle nut systems or worm gears, designed for the precise conversion of motion – from rotary to linear movement or changes in direction. Thanks to the use of cold-formed threaded spindles, which are either over molded or combined with precisely fitting plastic nuts, the systems offer high efficiency, wear resistance and virtually play-free pairings. Combined with plastic injection molding, they create cost-effective, compact solutions for positioning, fastening and tolerance compensation – ideal for demanding applications requiring high precision and efficiency.
    Applications: e.g.plastic gear parts - plastic/metal composite parts, actuator assemblies incl. housing parts, parking locks, parking brakes, steering column adjustments, liftgate and door locking, valve actuators, seat adjustments

  • Overview

    • Individual integration into customer projects
    • High degree of efficiency due to press polished thread surface
    • Very high efficiency in the production of the parts
    • High resistance to wear due to cold-hardened thread flanks

CAD & more - Your Online-Service

In this area we provide CAD data in various formats as well as PDFs of the technical drawings of our products EVO PT®, DELTA PT®, SHEETtracs® ALtracs® Xt and ALtracs® Plus. Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Help, guidance and technical support

Your contacts for industrial fastening systems

EJOT’s advanced fastening systems are found in countless industrial and engineering assemblies around the world. Click below for sales and technical support from one of our experienced team. We conduct inspections and observations onsite, in addition to providing help and advice direct from our UK manufacturing centre.

TORQtec® Motion converter

TORQtec® are EJOT systems, which convert one motion into another. This can be the conversion of one rotary motion into a rotation turned by 90°. Applications can be found in worm gears or spindle-nut-systems. The field of application for the TORQtec® motion converter is versatile. For example in exterior mirror and head rest adjustment systems for cars or spindle adjustments for gas appliances. Versions of the TORQtec® motion converter:

Motion Threads

The advantage of the TORQtec ® System is the cold-formed threaded spindle. The EJOT motion or trapezoidal threads, with a flank angle of less than 30° and a thread flank with very low surface roughness depth, contribute to the lightness of the counterpart.

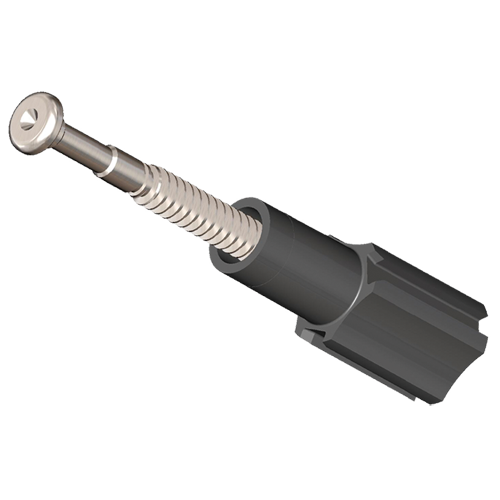

Spindle-nut-system

Completely cold-formed thread spindles, combined with accurately fitting nuts, preferably made of plastic, with very tight fitting thread pairs characterise these spindle-nut-systems.

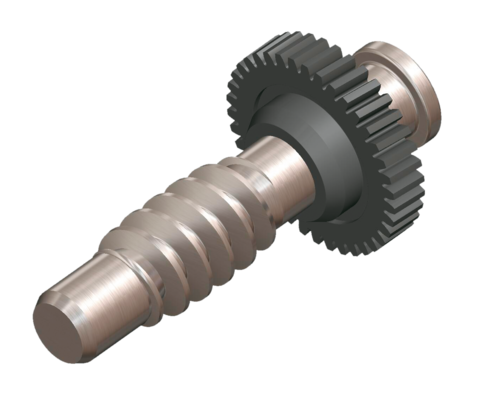

Worm gears

The described cold-forming technology is the basis for worm gear shafts. The thread flanks with very low surface roughness depth, ensure the high degree of efficiency of this system. Cold-forming technology combined with injection moulded gear elements from a single supplier.
