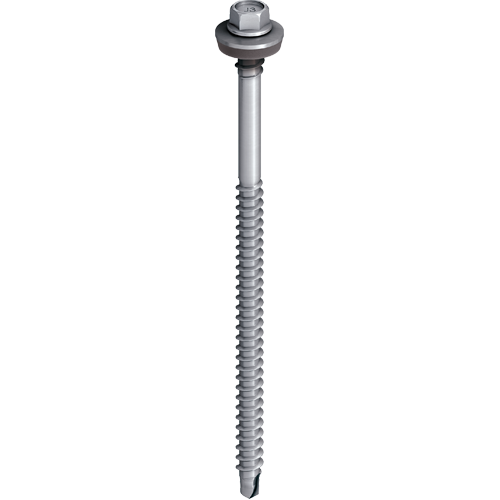

EJOT® JT3 D 2H 6.5/7.0

Specification

Applications
- Fastening sandwich panels to timber substructure
Properties
- A2 stainless steel with hardened steel drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- With free spin zone under screw head
- High thread
Technical specifications
- Diameter: 6.5 mm
- Drilling capacity t_I + t_II: 2.0 mm
- Drive: Hexagon A/F8
- Ø high thread: 7.0 mm
- Installation rotation speed: max. 1500 rpm
Additional information
- Register now for online prices
- View Construction Brochures

Downloads

EPD Self-tapping screws.pdf 1 MB
JT3-D-2H-6.5-7.0-UK-datasheet-issue-1.pdf 363 KB
ETA-13-0177-EN-GB.pdf 25 MB
DOP-ETA-130177-JT3.pdf 2 MB

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Drive	ø mm	Ø Sealing Washer mm	Clamp thickness mm	Unit
JT3 D 2H 6.5/7.0 x 100	7380666301	Hexagon 8mm AF	6.5	0 - none	16.0 - 50.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 16.0 - 50.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 100 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 120	7380667301	Hexagon 8mm AF	6.5	0 - none	36.0 - 70.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 36.0 - 70.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 120 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 140	7380668301	Hexagon 8mm AF	6.5	0 - none	56.0 - 90.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 56.0 - 90.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 140 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 160	7380602301	Hexagon 8mm AF	6.5	0 - none	76.0 - 110.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 76.0 - 110.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 160 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 180	7380669301	Hexagon 8mm AF	6.5	0 - none	96.0 - 130.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 96.0 - 130.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 180 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 200	7380655301	Hexagon 8mm AF	6.5	0 - none	116.0 - 150.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 116.0 - 150.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 200 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 220	7380689301	Hexagon 8mm AF	6.5	0 - none	136.0 - 170.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 136.0 - 170.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 220 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 240	7380656301	Hexagon 8mm AF	6.5	0 - none	156.0 - 190.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 156.0 - 190.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 240 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 260	7380717301	Hexagon 8mm AF	6.5	0 - none	176.0 - 210.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 176.0 - 210.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 260 Unit 100 * Price / 100
JT3 D 2H 6.5/7.0 x 280	7380657301	Hexagon 8mm AF	6.5	0 - none	196.0 - 230.0	100
Specifications Drive Hexagon 8mm AF ø 6.5 Ø Sealing Washer mm 0 - none Clamp thickness 196.0 - 230.0 Availability Orderidentifier JT3 D 2H 6.5/7.0 x 280 Unit 100 * Price / 100
