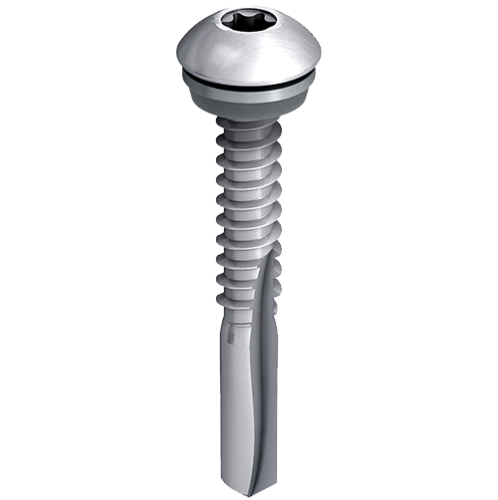

EJOT® JT3 FR 12 5.5 x 40

Specification

Applications
- Profiled or Aluminium roofing and cladding sheets to hot rolled steel sections
Properties
- Available unwashered
- Available powder coated
- Low profile Dome head
- Can be used in conjunction with S12 stainless/ EPDM vulcanised sealing washers
Technical specifications
- Drive: TORX^® T25
- Steel sections from 4.0 to 12.0mm in thickness
- Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point

Downloads

EPD Self-tapping screws.pdf 1 MB
JT3-FR-12-5.5-UK-datasheet-issue-1.pdf 363 KB
ETA 10/0200 28 MB
ETA-13-0177-EN-GB.pdf 25 MB
DOP-ETA-100200-JT3.pdf 3 MB
DOP-ETA-130177-JT3.pdf 2 MB

Read & Download Roofing and Cladding Brochure

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	ø mm	Ø Sealing Washer mm	Length mm	Clamp thickness mm		Unit
JT3 FR 12 5.5 x 40	7384134309	5.5	0 - none	40.0	4.0 - 14.0	12.0	100
Specifications ø 5.5 Ø Sealing Washer mm 0 - none Length 40.0 Clamp thickness 4.0 - 14.0 Maximum drilling capacity 12.0 Availability Orderidentifier JT3 FR 12 5.5 x 40 Unit 100 * Price / 100
JT3 FR 12 5.5 x 40 S12	3595669318	5.5	12	40.0	4.0 - 12.0	12.0	100
Specifications ø 5.5 Ø Sealing Washer mm 12 Length 40.0 Clamp thickness 4.0 - 12.0 Maximum drilling capacity 12.0 Availability Orderidentifier JT3 FR 12 5.5 x 40 S12 Unit 100 * Price / 100
