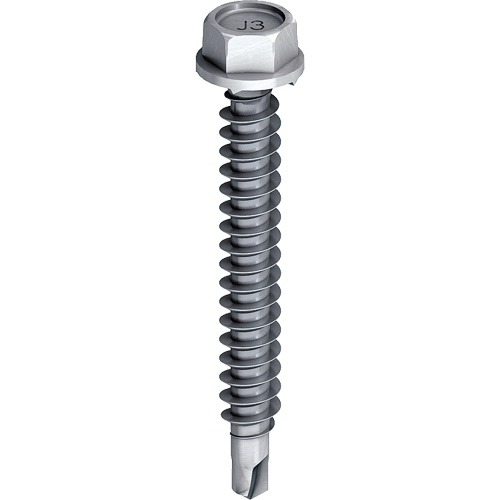

EJOT® JT3 X2 6.0

Specification

Applications
- For fixing standing seam systems
- For fixing halter brackets to aluminium substructure and timber substructure
Properties
- Under-head serrations to increase installation reliability
Technical specifications
- Drive: 8mm clip hex one piece socket
- Steel sections from 0.7 to 1.6mm in thickness
- Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Additional information
- Register now for online prices
- View Construction Brochures

Downloads

EPD Self-tapping screws.pdf 1 MB
JT3-X2-6.0-UK-datasheet-issue-1.pdf 362 KB

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Drive	Length mm	ø mm	Ø Sealing Washer mm	Clamp thickness mm		Unit
JT3 X2 6.0 x 25	9900101971	Hexagon 8mm AF	25.0	6.0	0 - none	0.7 - 9.0	1.6	100
Specifications Drive Hexagon 8mm AF Length 25.0 ø 6.0 Ø Sealing Washer mm 0 - none Clamp thickness 0.7 - 9.0 Maximum drilling capacity 1.6 Availability Orderidentifier JT3 X2 6.0 x 25 Unit 100 * Price / 100
JT3 X2 6.0 x 36	7380516301	Hexagon 8mm AF	36.0	6.0	0 - none	0.0 - 20.0	1.6	100
Specifications Drive Hexagon 8mm AF Length 36.0 ø 6.0 Ø Sealing Washer mm 0 - none Clamp thickness 0.0 - 20.0 Maximum drilling capacity 1.6 Availability Orderidentifier JT3 X2 6.0 x 36 Unit 100 * Price / 100
JT3 X2 6.0 x 46	7380517301	Hexagon 8mm AF	46.0	6.0	0 - none	0.0 - 30.0	1.6	100
Specifications Drive Hexagon 8mm AF Length 46.0 ø 6.0 Ø Sealing Washer mm 0 - none Clamp thickness 0.0 - 30.0 Maximum drilling capacity 1.6 Availability Orderidentifier JT3 X2 6.0 x 46 Unit 100 * Price / 100
JT3 X2 6.0 x 46	9900101400	Hexagon 8mm AF	46.0	6.0	0 - none	0.7 - 30.0	1.6	100
Specifications Drive Hexagon 8mm AF Length 46.0 ø 6.0 Ø Sealing Washer mm 0 - none Clamp thickness 0.7 - 30.0 Maximum drilling capacity 1.6 Availability Orderidentifier JT3 X2 6.0 x 46 Unit 100 * Price / 100
