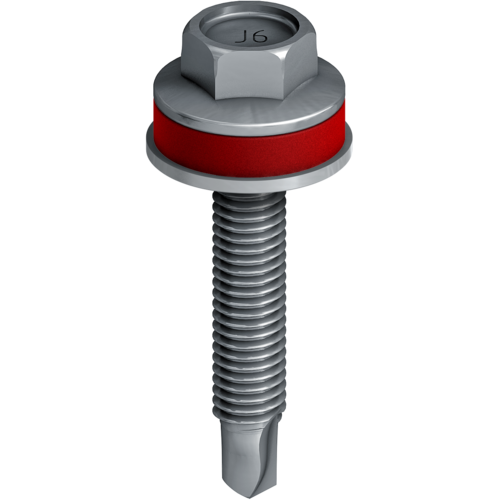

EJOT® JT6 2/5-5.0 x 30 Vario

Specification

Applications
- Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles.
Properties
- Buffer zone between the screw head and sliding disk prevents excessive clamp load of the joint.
- Pre-assembled captive sliding washer.
- Consistently low contact pressure prevents stick-slip phenmenon.
- No stripping/destruction of the thread in component II resulting in high tensile load capacity.
- High tensile and transverse load transmission in component II due to fine pitch thread.
- Buffer zone serves as visual set control.
- Same assembly concept for floating and fixed points.
Technical specifications
- Diameter: 5.0mm
- Drilling capacity: 3.00mm
- Drive: 8mm clip hex one piece socket
- A4 stainless steel with case hardened carbon steel drill point.

Downloads

Test certificate P-BWU02-178006.pdf 1 MB
EPD Self-tapping screws.pdf 1 MB

Read & Download Roofing and Cladding Brochure

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Length mm	ø mm	Maximum drilling capacity mm	Drive	Unit
JT6-2/5-5,0x 30 E14 VARIO	3598077991	30.0	5.0	3.0	Hexagon 8mm AF	100
Specifications Length 30.0 ø 5.0 Maximum drilling capacity 3.0 Drive Hexagon 8mm AF Availability Orderidentifier JT6-2/5-5,0x 30 E14 VARIO Unit 100 * Price / 100
	6598077991	30.0	5.0	3.0	Hexagon 8mm AF
Specifications Length 30.0 ø 5.0 Maximum drilling capacity 3.0 Drive Hexagon 8mm AF Availability Orderidentifier Unit * Price / 100
