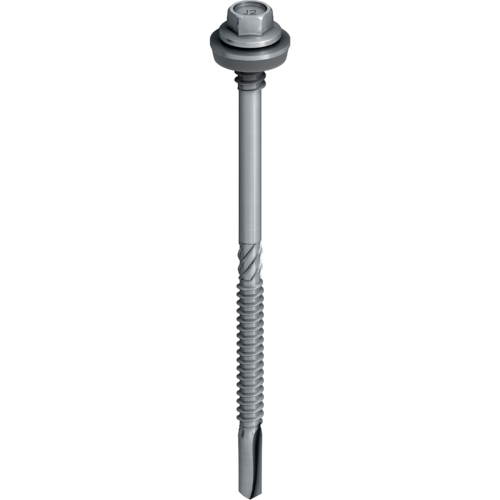

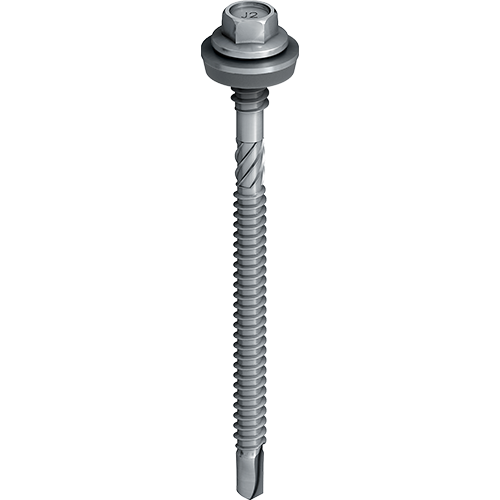

EJOT® JT2 D12 5.5/6.3
Specification
-
Applications
- Suitable for steel faced insulated sandwich panels to steel structures
-
Properties
- Can be used in conjunction with A15, A19 or A29 aluminium / EPDM vulcanised sealing washers
-
Technical specifications
- Drive: 8mm clip hex one piece socket
- Steel sections from 4.0mm to 12.0mm in thickness
- Material: Carbon steel with organic corrosion resistant finish
- 5.5mm diameter with 6.3mm high thread
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Ø Sealing Washer mm | Clamp thickness mm | Drive | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|
| JT2-D12-5.5/6.3 x 95 | 9900105563 | 95.0 | 0 - none | 53.0 - 73.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 95 A15 | 9900107352 | 95.0 | 15 | 55.0 - 73.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 95 A19 | 9900108943 | 95.0 | 19 | 55.0 - 73.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 95 A29 | 9900108944 | 95.0 | 29 | 55.0 - 72.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x115 | 3565200614 | 115.0 | 0 - none | 63.0 - 93.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x115 A15 | 9900108134 | 115.0 | 15 | 65.0 - 93.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x115 A19 | 9900108945 | 115.0 | 19 | 65.0 - 93.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 115 A29 | 9900108946 | 115.0 | 29 | 65.0 - 92.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 135 | 9900105564 | 135.0 | 0 - none | 73.0 - 113.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 135 A15 | 9900107079 | 135.0 | 15 | 75.0 - 113.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 135 A19 | 9900107190 | 135.0 | 19 | 75.0 - 113.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 135 A29 | 9900108947 | 135.0 | 29 | 75.0 - 112.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x155 | 3565700614 | 155.0 | 0 - none | 93.0 - 135.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 155 A19 | 9900107964 | 155.0 | 19 | 95.0 - 135.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 155 A15 | 9900108410 | 155.0 | 15 | 95.0 - 135.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 155 A29 | 9900108948 | 155.0 | 29 | 95.0 - 134.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x195 | 3569500614 | 195.0 | 0 - none | 123.0 - 175.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 195 A19 | 9900108077 | 195.0 | 19 | 125.0 - 175.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 195 A15 | 9900108221 | 195.0 | 15 | 125.0 - 175.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 235 | 3567100614 | 235.0 | 0 - none | 163.0 - 215.0 | Hexagon 8mm AF | 100 | |||
| JT2-D12-5.5/6.3 x 235 A15 | 9900109102 | 235.0 | 15 | 165.0 - 215.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 235 A29 | 9900109355 | 235.0 | 29 | 165.0 - 214.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x250 | 3567200614 | 250.0 | 0 - none | 178.0 - 230.0 | Hexagon 8mm AF | 100 | |||
| JT2-D-12-5,5/6,3x275 | 3567300614 | 275.0 | 0 - none | 203.0 - 255.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 275 A15 | 9900109356 | 275.0 | 15 | 205.0 - 255.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 275 A29 | 9900109357 | 275.0 | 29 | 205.0 - 254.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 300 | 3567400614 | 300.0 | 0 - none | 228.0 - 280.0 | Hexagon 8mm AF | 100 | |||
| JT2 D12 5.5/6.3 x 300 A29 | 9900109358 | 300.0 | 29 | 230.0 - 279.0 | Hexagon 8mm AF | 100 | |||
