Phillips Drive Bit
For use in conjunction with a drive bit holder

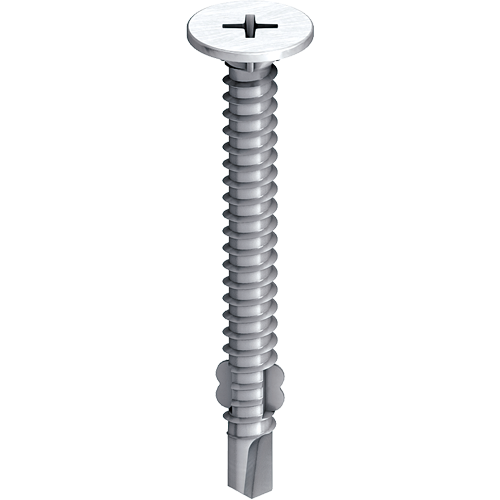

EJOT® TBF 4.8
Specification
-
Applications
- Wing driller for fixing timber battens/ sheathing boards to light steel sections or steel liner trays
-
Properties
- Unwashered
- Pinched wings to ream out timber/sheating boards and shatter upon contact with steelwork allowing the fixing to self-drill and tap into the steel
- Underhead ribs designed to aid embedment into timber
-
Technical specifications
- Drive: P2
- Steel sections from 0.9mm to 3.0mm in thickness
- Light steel liner trays 2 x 0.75mm - 2 x 1.2mm
- Material: Carbon Steel with an organic corrosion resistant finish
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | ø mm | Clamp thickness mm | Maximum drilling capacity mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|
| TBF 4.8 x 30 | 9900101926 | P2 | 30.0 | 4.8 | 5.0 - 14.0 | 3.0 | 100 | |||
| TBF 4.8 x 45 | 9900101929 | P2 | 45.0 | 4.8 | 5.0 - 29.0 | 3.0 | 100 | |||
| TBF 4.8 x 66 | 9900101930 | P2 | 66.0 | 4.8 | 5.0 - 50.0 | 3.0 | 100 | |||
Delivery status:
- Stock
- No Stock
