Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

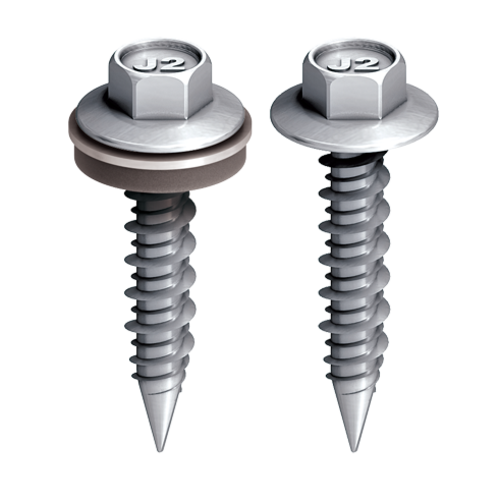

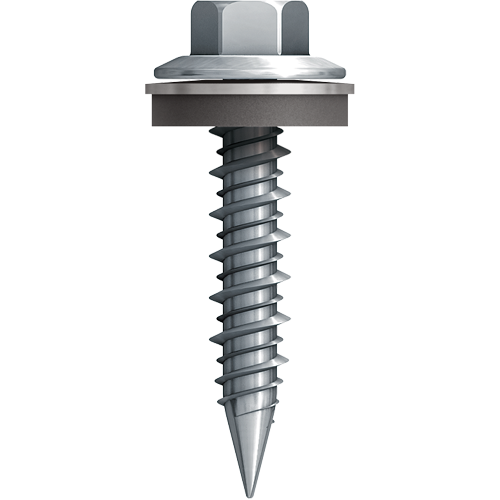

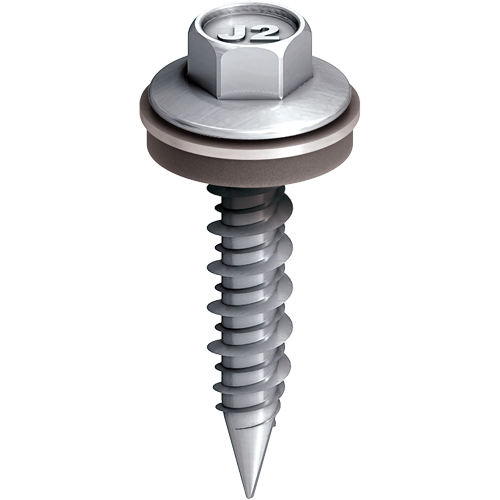

EJOT® TS 6.3
Specification
-
Applications
- For profiled roofing and cladding sheets to timber sections
-
Properties
- For timber: mechanical performance is dependent on embedment and grade of timber
- Available unwashered
- Can be used in conjunction with A15,A19 or A29 aluminium / EPDM vulcanised sealing washers
-
Technical specifications
- Drive: 8mm magnetic hex one piece socket
- Steel sections from 0.4 to 0.9mm in thickness
- Mechanical performance is dependent on embedment and grade of timber
- Material: Carbon Steel with an organic corrosion resistant finish
Additional information
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | ø mm | Ø Sealing Washer mm | Maximum drilling capacity mm | Unit | Availability | * Price / 100 | |
|---|---|---|---|---|---|---|---|---|---|---|
| TS 6.3 x 32 | 9900102654 | Hexagon 8mm AF | 32.0 | 6.3 | 0 - none | 0.9 | 100 | |||
| TS 6.3 x 32 A15 | 3586332021 | Hexagon 8mm AF | 32.0 | 6.3 | 15 | 0.9 | 100 | |||
| TS 6.3 x 32 A19 | 3586332022 | Hexagon 8mm AF | 32.0 | 6.3 | 19 | 0.9 | 100 | |||
| TS 6.3 x 32 A29 | 9900030026 | Hexagon 8mm AF | 32.0 | 6.3 | 29 | 0.9 | 100 | |||
| TS 6.3 x 45 | 9900102653 | Hexagon 8mm AF | 45.0 | 6.3 | 0 - none | 0.9 | 100 | |||
| TS 6.3 x 45 A15 | 3586345021 | Hexagon 8mm AF | 45.0 | 6.3 | 15 | 0.9 | 100 | |||
| TS 6.3 x 45 A19 | 3586345022 | Hexagon 8mm AF | 45.0 | 6.3 | 19 | 0.9 | 100 | |||
| TS 6.3 x 45 A29 | 3586345034 | Hexagon 8mm AF | 45.0 | 6.3 | 29 | 0.9 | 100 | |||
| TS 6.3 x 60 | 3586360000 | Hexagon 8mm AF | 60.0 | 6.3 | 0 - none | 0.9 | 100 | |||
| TS 6.3 x 60 A15 | 3586360021 | Hexagon 8mm AF | 60.0 | 6.3 | 15 | 0.9 | 100 | |||
| TS 6.3 x 60 A19 | 3586360022 | Hexagon 8mm AF | 60.0 | 6.3 | 19 | 0.9 | 100 | |||
| TS 6.3 x 60 A29 | 9900030557 | Hexagon 8mm AF | 60.0 | 6.3 | 29 | 0.9 | 100 | |||
