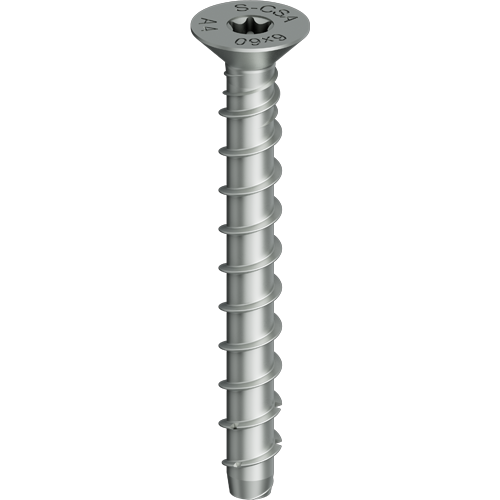

EJOT® JC6-ST 6
Specification
-
Applications
- Permanently wet indoor use
- Outdoor use, including industrial and maritime environments
- Suitable for canopies, gates, shelving, cable trays, rails, stadium seating, impact protection, timber brackets & much more
-
Properties
- A4 stainless steel with hardened steel tip
- Countersunk head
- Drive: TORX T30
- Lengths: 50 – 100mm
- No expansion forces, therefore reduced edge distance and spacing
- Self-tapping screw anchor for push-through installation
- No predefined tightening torque
- Fully removable
-
Technical specifications
- ETA approved for cracked and non-cracked concrete C20/25 – C50/60
- Fire resistance: R120
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Clamping thickness tfix≤ mm |
Pilot Hole Ø mm | Drive | Unit | Availability | * Price / | |
|---|---|---|---|---|---|---|---|---|---|
| JC6-ST 6x50/5 T30 A4 | 9650071985 | 50.0 | 5.0 | 6.0 | TORX T30 | ||||
| JC6-ST 6x60/15/5 T30 A4 | 9650071986 | 60.0 | 15.0 - 5.0 | 6.0 | TORX T30 | ||||
| JC6-ST 6x70/25/15 T30 A4 | 9650071987 | 70.0 | 25.0 - 15.0 | 6.0 | TORX T30 | ||||
| JC6-ST 6x100/55/45 T30 A4 | 9650071990 | 100.0 | 55.0 - 45.0 | 6.0 | TORX T30 | ||||
