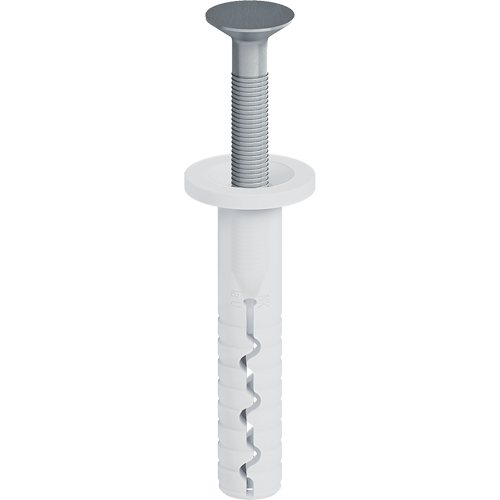

EJOT® ejotherm® NK U 8

NK U

Specification

  • Applications

    • Fastening of rail-systems
    • Hammer-in anchor for rails
    • For fixing holding and base rails
    • Approved for concrete, solid and perforated masonry

  • Properties

    • Approved for concrete, solid and perforated masonry
    • Shortest embedment depths, minimum drill hole depths
    • High loads for high security
    • Premounted nail for quick installation
    • To compensate facade tolerances use spacers EJOT AS

  • Technical specifications

    • Anchor diameter: 8 mm
    • Collar diameter:16 mm
    • Drill hole depth h1 >: 35 mm
    • Embedment depth hef >: 25 mm
    • Use categories acc. to ETA: A, B, C
    • European Technical Approval: ETA-05/0009

    Additional information

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.

Filter

Selected filters

    Orderidentifier Article Number Anchor diameter mm Length mm Substrate Categories Type of ETICS Anchors Unit
    ejotherm NK U 8 x 45 8797045400 8.0 45.0 A-C Anchors for Rail Systems 100

    Specifications

    Anchor diameter
    8.0
    Length
    45.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Anchors for Rail Systems
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 8 x 45
    Unit
    100
    ejotherm NK U 8 x 65 8797065400 8.0 65.0 A-C Anchors for Rail Systems 100

    Specifications

    Anchor diameter
    8.0
    Length
    65.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Anchors for Rail Systems
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 8 x 65
    Unit
    100
    ejotherm NK U 8 x 85 8797085400 8.0 85.0 A-C Anchors for Rail Systems 100

    Specifications

    Anchor diameter
    8.0
    Length
    85.0
    Substrate Categories
    A-C
    Type of ETICS Anchors
    Anchors for Rail Systems
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 8 x 85
    Unit
    100
