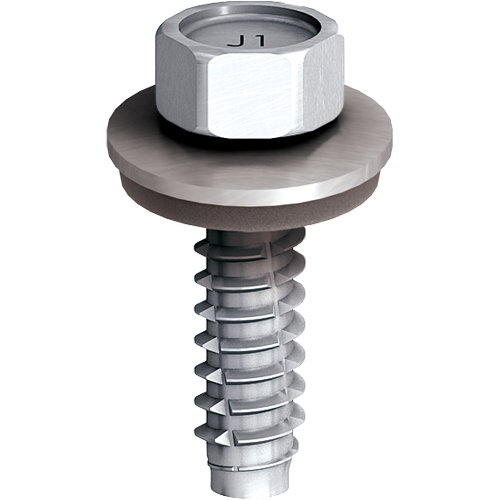

EJOT® JZ1 6.3 x 22

Specification

Applications
- For fixing profiled steel sheet to steel substrate in highly corrosive environments
Properties
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Highest corrosion protection class
Technical specifications
- Drive: 3/8" Magnetic Hex One Piece Socket
- Material: Stainless steel 1.4529
Additional information
- Register now for online prices
- View Construction Brochures

Downloads

DoP ETA-10/0200 JZ1.pdf 636 KB
EPD Self-tapping screws.pdf 1 MB
JZ1-6.3-UK-datasheet-issue-1.pdf 444 KB
ETA 10/0200 28 MB
ETA 24/0547 1 MB
Industrial-Lightweight-Construction-1-FM-Approval.pdf 91 KB

When choosing your product below, please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Drive	ø mm	Ø Sealing Washer mm	Clamp thickness mm	Unit
JZ1 6.3 x 22	3111200319	Hexagon 3/8 AF	6.3	0 - none	2.0 - 17.0	100
Specifications Drive Hexagon 3/8 AF ø 6.3 Ø Sealing Washer mm 0 - none Clamp thickness 2.0 - 17.0 Availability Orderidentifier JZ1 6.3 x 22 Unit 100 * Price / 100
JZ1 6.3 x 22 S16	3111211319	Hexagon 3/8 AF	6.3	16	0.0 - 7.0	100
Specifications Drive Hexagon 3/8 AF ø 6.3 Ø Sealing Washer mm 16 Clamp thickness 0.0 - 7.0 Availability Orderidentifier JZ1 6.3 x 22 S16 Unit 100 * Price / 100
