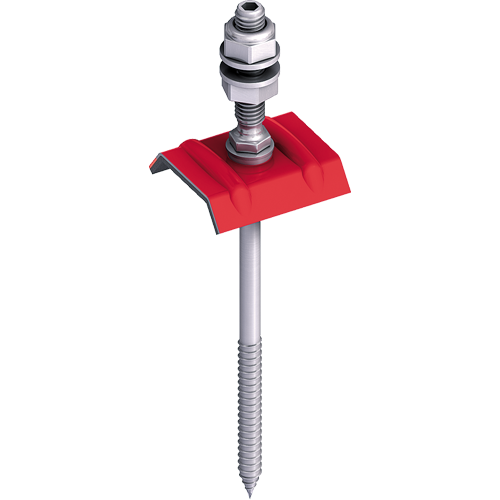

EJOT® JA3 SB 8.0xL E16 & ORKAN Storm Washer

Specification

  • Applications

    • The dimensions of the profile sheet is required for the correct Storm washer
    • For fixing solar installations to timber substructures
    • Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels
    • STORM WASHER IS SOLD SEPARATELY
  • Properties

    • Quick retrofitting on existing roofs
    • No additional holes in the roof cladding
    • Use of proven sealing systems
    • No special installation tools necessary
    • Extremely safe fastening with direct embedment into the substructure
    • DIBt approved fastener
    • ETA-22/0762
  • Technical specifications

    • For all technical specifications see download
    • For a pre structural assessment download the questionnaire

    Additional information

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm ø mm Thread Property Type (Solar) Unit Availability * Price / 100
    JA3 SB 8.0 x 80/50 E16 3150891905 80.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    80.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 80/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 100/50 E16 3151091905 100.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    100.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 100/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 130/50 E16 3151391905 130.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    130.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 130/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 150/50 E16 3151591905 150.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    150.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 150/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 180/50 E16 3151891905 180.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    180.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 180/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 180/70 E16 3151891907 180.0 8.0 M10x70 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    180.0
    ø
    8.0
    Thread
    M10x70
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 180/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 200/50 E16 3152091905 200.0 8.0 M10x50 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 200/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JA3 SB 8.0 x 200/70 E16 3152091907 200.0 8.0 M10x70 Commercial, Agricultural 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x70
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Timber
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JA3 SB 8.0 x 200/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
