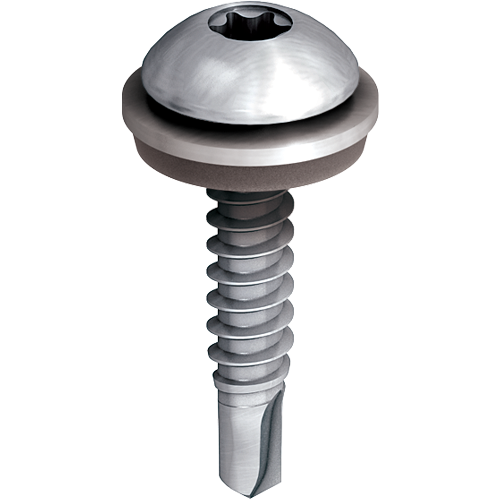

EJOT® JT4 FR 4 4.8 x 19

Specification

  • Applications

    • Especially suited for aluminium sheets, sections / helping hand brackets to aluminium 1.5mm-4.0mm
  • Properties

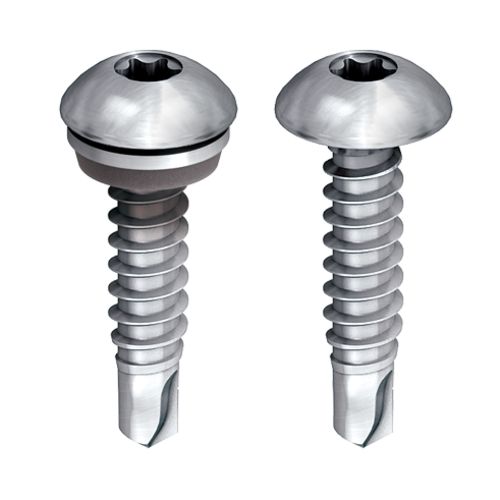

    • Available unwashered
    • Low profile Dome head
    • Can be assembled with S12 stainless steel / EPDM vulcanised sealing washers
    • Available in powder coated
  • Technical specifications

    • Material; Fully A2 Austenitic Stainless Steel
    • Drive: TORX® T25

Read & Download Roofing and Cladding Brochure



When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit Availability * Price / 100
    JT4 FR 4 4.8 x 19 7381095300 4.8 0 - none 19.0 0.0 - 9.0 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Maximum drilling capacity
    4.0
    Availability
    Orderidentifier
    JT4 FR 4 4.8 x 19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 FR 4 4.8 x 19 S12 7381095393 4.8 12 19.0 1.5 - 6.0 100 Please login to check the price Please login to check the price

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    12
    Length
    19.0
    Clamp thickness
    1.5 - 6.0
    Maximum drilling capacity
    4.0
    Availability
    Orderidentifier
    JT4 FR 4 4.8 x 19 S12
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
