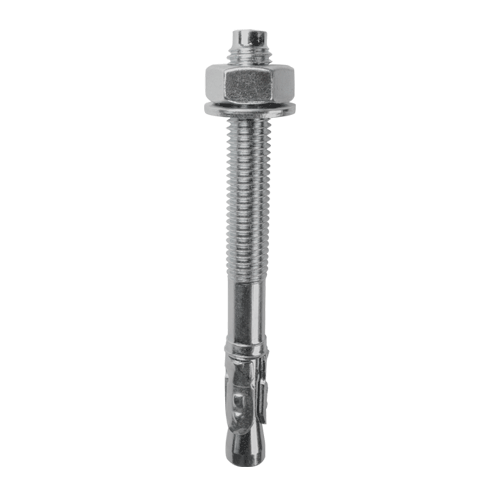

EJOT® BA-C NC

Specification

Applications
- For embedment in non-cracked concrete ≥ C20/25 (Option 7)
- Dry internal conditions
- For anchoring medium-heavy to heavy loads such as pillars & metal/ wooden structures
- For pre-set or in-place installations
Properties
- Zinc-plated carbon steel
- M8 Lengths: 75 – 115mm (Drive: SW13)
- M10 Lengths: 85 – 125mm (Drive: SW17)
- M12 Lengths: 110 – 150mm (Drive: SW19)
- M16 Lengths: 145 – 175mm (Drive: SW24)
Technical specifications
- ETA Approved for non-cracked concrete

Downloads

Through-Bolts Technical Specifications Brochure 1 MB
ETA 20/0286 523 KB
DoP ETA 20/0286 525 KB
BA-C NC Product Data Sheet 465 KB

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	ø mm	Length mm	Clamping thickness t_fix≤ mm	Hole depth t ≤ mm	Unit
BA-C 8/10 NC	9650007202	8.0	75.0	10.0	63.0	100
Specifications ø 8.0 Length 75.0 Clamping thickness t_fix≤ 10.0 Hole depth t ≤ 63.0 Availability Orderidentifier BA-C 8/10 NC Unit 100 * Price / 100
BA-C 8/30 NC	9650007203	8.0	95.0	30.0	63.0	100
Specifications ø 8.0 Length 95.0 Clamping thickness t_fix≤ 30.0 Hole depth t ≤ 63.0 Availability Orderidentifier BA-C 8/30 NC Unit 100 * Price / 100
BA-C 8/50 NC	9650007205	8.0	115.0	50.0	63.0	100
Specifications ø 8.0 Length 115.0 Clamping thickness t_fix≤ 50.0 Hole depth t ≤ 63.0 Availability Orderidentifier BA-C 8/50 NC Unit 100 * Price / 100
BA-C 10/10 NC	9650007208	10.0	85.0	10.0	69.0	100
Specifications ø 10.0 Length 85.0 Clamping thickness t_fix≤ 10.0 Hole depth t ≤ 69.0 Availability Orderidentifier BA-C 10/10 NC Unit 100 * Price / 100
BA-C 10/20 NC	9650007209	10.0	95.0	20.0	69.0	100
Specifications ø 10.0 Length 95.0 Clamping thickness t_fix≤ 20.0 Hole depth t ≤ 69.0 Availability Orderidentifier BA-C 10/20 NC Unit 100 * Price / 100
BA-C 10/30 NC	9650007210	10.0	105.0	30.0	69.0	100
Specifications ø 10.0 Length 105.0 Clamping thickness t_fix≤ 30.0 Hole depth t ≤ 69.0 Availability Orderidentifier BA-C 10/30 NC Unit 100 * Price / 100
BA-C 10/50 NC	9650007211	10.0	125.0	50.0	69.0	100
Specifications ø 10.0 Length 125.0 Clamping thickness t_fix≤ 50.0 Hole depth t ≤ 69.0 Availability Orderidentifier BA-C 10/50 NC Unit 100 * Price / 100
BA-C 12/10 NC	9650007212	12.0	110.0	10.0	92.0	100
Specifications ø 12.0 Length 110.0 Clamping thickness t_fix≤ 10.0 Hole depth t ≤ 92.0 Availability Orderidentifier BA-C 12/10 NC Unit 100 * Price / 100
BA-C 12/20 NC	9650007213	12.0	120.0	20.0	92.0	100
Specifications ø 12.0 Length 120.0 Clamping thickness t_fix≤ 20.0 Hole depth t ≤ 92.0 Availability Orderidentifier BA-C 12/20 NC Unit 100 * Price / 100
BA-C 12/30 NC	9650007214	12.0	130.0	30.0	92.0	100
Specifications ø 12.0 Length 130.0 Clamping thickness t_fix≤ 30.0 Hole depth t ≤ 92.0 Availability Orderidentifier BA-C 12/30 NC Unit 100 * Price / 100
BA-C 12/50 NC	9650007215	12.0	150.0	50.0	92.0	100
Specifications ø 12.0 Length 150.0 Clamping thickness t_fix≤ 50.0 Hole depth t ≤ 92.0 Availability Orderidentifier BA-C 12/50 NC Unit 100 * Price / 100
BA-C 16/20 NC	9650007219	16.0	145.0	20.0	109.0	100
Specifications ø 16.0 Length 145.0 Clamping thickness t_fix≤ 20.0 Hole depth t ≤ 109.0 Availability Orderidentifier BA-C 16/20 NC Unit 100 * Price / 100
BA-C 16/50 NC	9650007220	16.0	175.0	50.0	109.0	100
Specifications ø 16.0 Length 175.0 Clamping thickness t_fix≤ 50.0 Hole depth t ≤ 109.0 Availability Orderidentifier BA-C 16/50 NC Unit 100 * Price / 100
