DELTA PT®

Specification

  • Overview

    • High load capacity direct fastening into plastic material
    • High fatigue strength
    • Safety due to high tensile and torsion strength as well as vibration resistance
    • A wide range of possible tightening torques
    • Easy design engineering with the EJOT® DELTA CALC prognosis programme
    • Lightweight design: use of shorter fasteners and/or smaller diameters possible under certain conditions

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

DELTA PT® CAD data *

Here you can directly download CAD data, PDF and DXF drawings.



DELTA CALC® Prognosis Program *

Use our prognosis program for the calculation and dimensioning of your fastening connection. This software combines the guidelines of VDI 2230 with extensive experience of EJOT in direct fastening.



CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Help, guidance and technical support

Your contacts for industrial fastening systems

EJOT’s advanced fastening systems are found in countless industrial and engineering assemblies around the world. Click below for sales and technical support from one of our experienced team. We conduct inspections and observations onsite, in addition to providing help and advice direct from our UK manufacturing centre.

The ‘all-rounder’ for plastic assembly

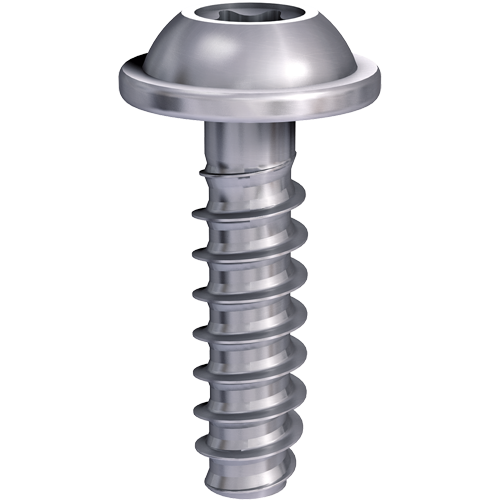

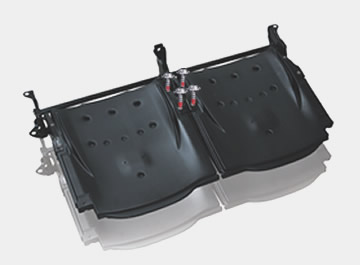

The EJOT DELTA PT® screw is a special fastening element designed for reliable and easy direct assembly into thermoplastics. Its optimum design is the result of a long-term R&D programme in combination with experience of using DELTA PT® in the field for the direct assembly of even highly loaded thermoplastic materials. It has a wide range of possible uses, including all kinds of industrial applications, but it is in the automotive industry where the DELTA PT® screw has established itself as a dependable solution. This is through a design able to accommodate the very high loads which components used in automotive applications often have to withstand.

Individual design engineering assistance

To help achieve the ideal assembly, EJOT provides a valuable online prognosis programme to assist designers – the EJOT® DELTA CALC. This programme has been developed using data on the mechanical parameters of many thousands of applications and test assemblies, making it extremely useful for the pre-dimensioning of direct assembly into thermoplastics. Stored within the tool are the fastening parameters of the DELTA PT® screw according to material and pilot hole dimension, which helps designers save time during the design stage of a component.

Innovative thread geometry

One of the most important factors in the performance reliability of the EJOT DELTA PT® is its special thread geometry. This was developed by closely analysing the material displacement during thread-forming. The result is a flank angle which reduces the radial stress compared to common thread flanks with 60° angles. The respective 20° or 30° angles of DELTA PT® generate only slight radial stress enabling a thin-walled design to be realised. The thread flank also guarantees optimum material flow of the formed plastic even with reinforced thermoplastic. The ideal pitch of the DELTA PT® screw was determined by the balanced ratio of highest possible clamp load and low surface pressure in the plastic, which achieves very high thread engagement even at small installation depths.



DELTA PT® WN54 Head Styles and Drives

  • WN5411 round washer head with cross-recess Z (or H)
  • WN5412 pan head with cross recess Z (or H)
  • WN5447 hexagon washer head

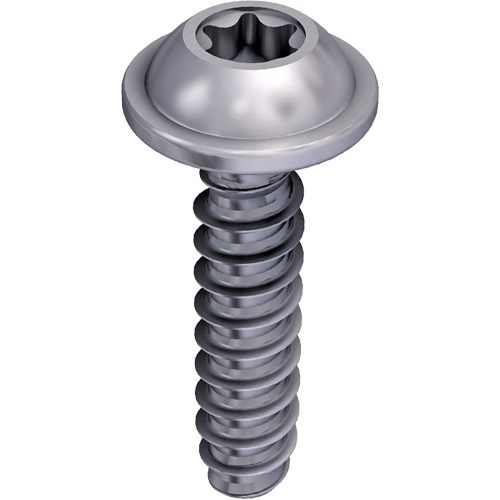

  • WN5451 round washer head with TORX PLUS®/AUTOSERT
  • WN5452 pan head with TORX PLUS®/AUTOSERT
  • WN5453 oval countersunk head with TORX PLUS®/AUTOSERT
  • WN5454 flat countersunk head with TORX PLUS®/AUTOSERT

For detailed information, please refer to the EJOT company standard.

You can download these in our service area "CAD & more".
