CELL PT®

Specification

  • Overview

    • Standard lengths: from approx. 3.5 times nominal diameter
    • Standard diameter: from 3.5 to 6.5 mm (more on request)
    • For cellular foamed thermoplastics
    • High vibration fatigue strength
    • Safety due to high tensile, torsional and vibration resistance
    • Also available in plastic

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

EVO PT® Calculation Form *

You can use the following form to order calculations for the screw types EVO PT®, DELTA PT® and ALtracs® Plus.



CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

CAD & more - Your Online-Service

In this area we provide CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus. Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Help, guidance and technical support

Your contacts for industrial fastening systems

EJOT’s advanced fastening systems are found in countless industrial and engineering assemblies around the world. Click below for sales and technical support from one of our experienced team. We conduct inspections and observations onsite, in addition to providing help and advice direct from our UK manufacturing centre.

For foamed thermoplastics

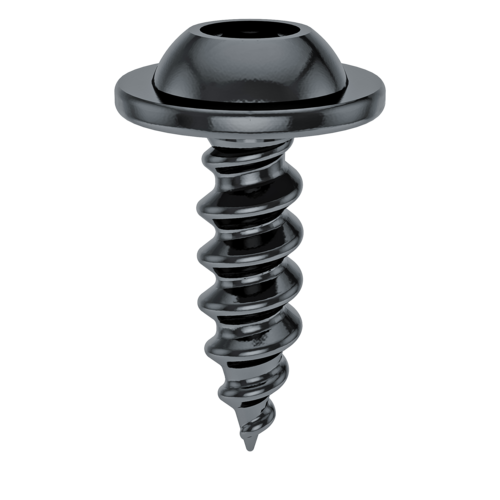

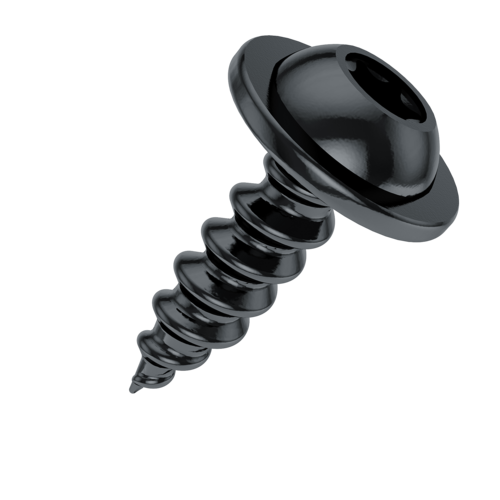

The EJOT CELL PT® screw is a special element for the safe and problem-free direct fastening in cellular foamed thermoplastic materials. The special thread contour was developed for cellular foamed thermoplastics and the functionality was confirmed in a comprehensive test series. In the case of blind hole screw joints, the specially formed point penetrates into the plastic material at the bottom of the blind hole, and a further increase of the torques is achieved.
