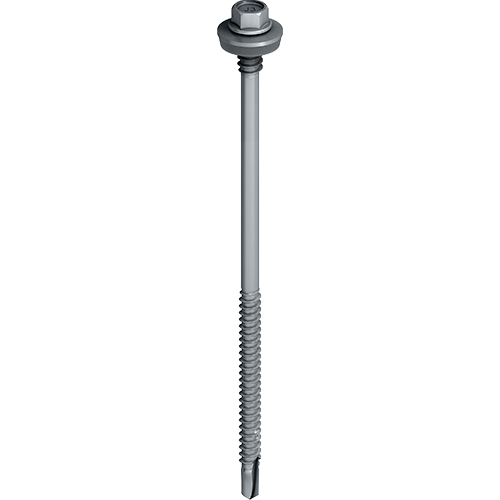

EJOT® JT3 D6H 5.5/6.3
Specification
-
Applications
- For steel profiled insulated sandwich panels to light to medium steel sections (1.2mm - 6.0mm in thickness) or timber sections (with 45mm - 50mm embedment)
-
Properties
- Available unwashered
- Can be used in conjunction with S16 and S19 stainless/ EPDM and A29 aluminium vulcanised sealing washers
- S16 washered variants can be used with EJOT trapezoidal and sinusoidal storm washers
-
Technical specifications
- Drive: 8mm clip hex one piece socket
- Material: A2 austenitic stainless steel with carbon steel drill point
- 5.5mm diameter with 6.3mm high thread
Additional information
When choosing your product below, please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order, including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Drive | Length mm | ø mm | High thread Ø mm | Ø Sealing Washer mm | Clamp thickness mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JT3 D6H 5.5/6.3 x 67 | 7380500301 | Hexagon 8mm AF | 67.0 | 5.5 | 6.3 | 0 - none | 35.0 - 50.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 87 | 7380425301 | Hexagon 8mm AF | 87.0 | 5.5 | 6.3 | 0 - none | 42.0 - 70.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 107 | 7380426301 | Hexagon 8mm AF | 107.0 | 5.5 | 6.3 | 0 - none | 52.0 - 90.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 127 | 7380427301 | Hexagon 8mm AF | 127.0 | 5.5 | 6.3 | 0 - none | 72.0 - 110.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 147 | 7380428301 | Hexagon 8mm AF | 147.0 | 5.5 | 6.3 | 0 - none | 92.0 - 130.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 167 | 7380543301 | Hexagon 8mm AF | 167.0 | 5.5 | 6.3 | 0 - none | 112.0 - 150.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 197 | 7380493301 | Hexagon 8mm AF | 197.0 | 5.5 | 6.3 | 0 - none | 142.0 - 180.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 237 | 7380568301 | Hexagon 8mm AF | 237.0 | 5.5 | 6.3 | 0 - none | 174.0 - 221.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 267 | 7380636301 | Hexagon 8mm AF | 267.0 | 5.5 | 6.3 | 0 - none | 202.0 - 250.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 67 S16 | 3554511372 | Hexagon 8mm AF | 67.0 | 5.5 | 6.3 | 16 | 30.0 - 48.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 87 S16 | 3556011371 | Hexagon 8mm AF | 87.0 | 5.5 | 6.3 | 16 | 41.0 - 68.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 107 S16 | 3556111371 | Hexagon 8mm AF | 107.0 | 5.5 | 6.3 | 16 | 51.0 - 88.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 127 S16 | 3556211371 | Hexagon 8mm AF | 127.0 | 5.5 | 6.3 | 16 | 71.0 - 108.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 147 S16 | 3556311371 | Hexagon 8mm AF | 147.0 | 5.5 | 6.3 | 16 | 91.0 - 128.0 | 6.0 | ||||
| JT3 D6H 5.5/6.3 x 147 S16 | 9900030094 | Hexagon 8mm AF | 147.0 | 5.5 | 6.3 | 16 | 92.0 - 128.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 167 S16 | 3556711371 | Hexagon 8mm AF | 167.0 | 5.5 | 6.3 | 16 | 111.0 - 148.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 197 S16 | 9900030039 | Hexagon 8mm AF | 197.0 | 5.5 | 6.3 | 16 | 142.0 - 178.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 237 S16 | 3559611372 | Hexagon 8mm AF | 237.0 | 5.5 | 6.3 | 16 | 171.0 - 218.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 267 S16 | 9900104213 | Hexagon 8mm AF | 267.0 | 5.5 | 6.3 | 16 | 202.0 - 248.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 67 S19 | 9900030561 | Hexagon 8mm AF | 67.0 | 5.5 | 6.3 | 19 | 35.0 - 48.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 107 S19 | 3596166371 | Hexagon 8mm AF | 107.0 | 5.5 | 6.3 | 19 | 52.0 - 88.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 127 S19 | 3556266371 | Hexagon 8mm AF | 127.0 | 5.5 | 6.3 | 19 | 71.0 - 108.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 147 S19 | 3556366371 | Hexagon 8mm AF | 147.0 | 5.5 | 6.3 | 19 | 91.0 - 128.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 167 S19 | 3556766371 | Hexagon 8mm AF | 167.0 | 5.5 | 6.3 | 19 | 111.0 - 148.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 197 S19 | 9900030060 | Hexagon 8mm AF | 197.0 | 5.5 | 6.3 | 19 | 142.0 - 178.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 237 S19 | 9900030829 | Hexagon 8mm AF | 237.0 | 5.5 | 6.3 | 19 | 171.0 - 218.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 267 S19 | 9900103799 | Hexagon 8mm AF | 267.0 | 5.5 | 6.3 | 19 | 202.0 - 248.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 87 A29 | 9900030233 | Hexagon 8mm AF | 87.0 | 5.5 | 6.3 | 29 | 42.0 - 67.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 107 A29 | 9900030175 | Hexagon 8mm AF | 107.0 | 5.5 | 6.3 | 29 | 52.0 - 87.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 127 A29 | 9900030185 | Hexagon 8mm AF | 127.0 | 5.5 | 6.3 | 29 | 72.0 - 107.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 147 A29 | 9900030232 | Hexagon 8mm AF | 147.0 | 5.5 | 6.3 | 29 | 92.0 - 127.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 167 A29 | 9900030562 | Hexagon 8mm AF | 167.0 | 5.5 | 6.3 | 29 | 112.0 - 147.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 197 A29 | 9900030563 | Hexagon 8mm AF | 197.0 | 5.5 | 6.3 | 29 | 142.0 - 177.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 237 A29 | 3559635372 | Hexagon 8mm AF | 237.0 | 5.5 | 6.3 | 29 | 171.0 - 218.0 | 6.0 | 100 | |||
| JT3 D6H 5.5/6.3 x 267 A29 | 9900104214 | Hexagon 8mm AF | 267.0 | 5.5 | 6.3 | 29 | 202.0 - 247.0 | 6.0 | 100 | |||
