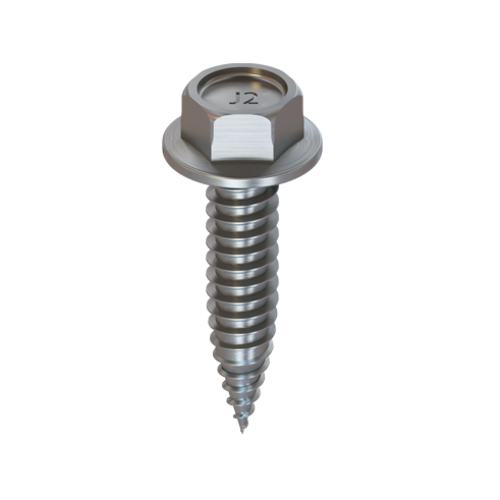

EJOT® JF2 2 5.5 x 25

Specification

Applications
- For laps or roofing / cladding sheets and flashings
Properties
- Innovative point geometry
- Pre-assembled sealing washer.
- Pierce point non-skid application.
- Fastening with minimal swarf.
- Can be used in conjunction with A15 and A19 aluminium/EPDM vulcanised sealing washers
- Secondary fastener
Technical specifications
- Drive: 8mm clip hex one piece socket.
- For steel sheets and flashings 0.4mm - 0.8mm in thickness
- Material: Carbon steel with corrosion resistant finish
Additional information
- Register now for online prices
- View Construction Brochures

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.

* To see prices, please log in here.

Filter

Selected filters

Orderidentifier	Article Number	Drive	Length mm	ø mm	Ø Sealing Washer mm	Clamp thickness mm	Maximum drilling capacity mm	Unit
JF2 5.5 x 25	9900104362	8mm Hexagon Head AF	25.0	5.5	0 - none	0.0 - 7.0	2.0	100
Specifications Drive 8mm Hexagon Head AF Length 25.0 ø 5.5 Ø Sealing Washer mm 0 - none Clamp thickness 0.0 - 7.0 Maximum drilling capacity 2.0 Availability Orderidentifier JF2 5.5 x 25 Unit 100 * Price / 100
JF2-2-5.5 x 25 A15	9900105090	8mm Hexagon Head AF	25.0	5.5	15	0.5 - 10.0	2.0	100
Specifications Drive 8mm Hexagon Head AF Length 25.0 ø 5.5 Ø Sealing Washer mm 15 Clamp thickness 0.5 - 10.0 Maximum drilling capacity 2.0 Availability Orderidentifier JF2-2-5.5 x 25 A15 Unit 100 * Price / 100
JF2-2-5.5 x 25 A19	9900105302	8mm Hexagon Head AF	25.0	5.5	19	0.5 - 10.0	2.0	100
Specifications Drive 8mm Hexagon Head AF Length 25.0 ø 5.5 Ø Sealing Washer mm 19 Clamp thickness 0.5 - 10.0 Maximum drilling capacity 2.0 Availability Orderidentifier JF2-2-5.5 x 25 A19 Unit 100 * Price / 100
