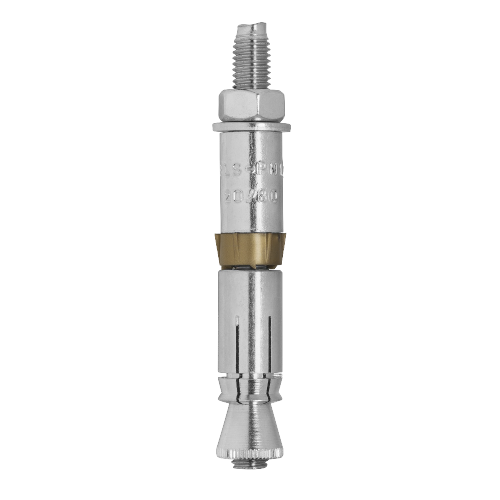

LIEBIG® Superplus BLS P

Specification

  • Applications

    This product has several applications including fixing:

    • Steel Baseplates & columns
    • Structural beams & steel work
    • Facades
    • Steel & industrial plants
    • Power plants & nuclear
    • Machines
    • M&E: overhead lines and catenary
    • Tunnel ventilation & jet fans
    • Safety Barriers & guide rails
    • Lifts and elevator variations
    • Cranes and Crane rails
  • Properties

    • Simplest, quickest and safest solution on the market, this unique heavy-duty anchor, high capacity is for push-through installations into cracked and non-cracked concrete
    • It's Automatic Self undercut technology created by applying torque, is designed for increased reliability
    • Minimal expansion forces allow for small spacings and edge distances
    • Lower installed cost than traditional undercut anchors
      The sleeves outer cutting teeth expand and undercut into the base material
    • Shallow embedment depths
    • Its anti-rotational keys allow for additional friction hold or overhead applications
    • For very high load performance & static, quasi-static and seismic loads
  • Base materials

    • ETA approved
    • Thread Size: M6 - M16
    • Independent assessment according to ACI 35
    • Hex nut
    • UKTA approval
    • C1/C2 Seismic rating

Read & Download LIEBIG BLS brochure



When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth t ≤ mm Unit
    LIEBIG® SUPERPLUS BLS-P M12-20/80/15 9650180015 20.0 135.0 15.0 105.0 25

    Specifications

    ø
    20.0
    Length
    135.0
    Clamping thickness

    tfix

    15.0
    Hole depth t ≤
    105.0
    Embedment
    80.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® SUPERPLUS BLS-P M12-20/80/15
    Unit
    25
    LIEBIG® SUPERPLUS BLS-P M12-20/150/30 9651150030 20.0 220.0 30.0 175.0 10

    Specifications

    ø
    20.0
    Length
    220.0
    Clamping thickness

    tfix

    30.0
    Hole depth t ≤
    175.0
    Embedment
    150.0
    Clamp thickness
    30.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® SUPERPLUS BLS-P M12-20/150/30
    Unit
    10
    LIEBIG® SUPERPLUS BLS M16-25/150/40 9655150040 25.0 240.0 40.0 185.0 5

    Specifications

    ø
    25.0
    Length
    240.0
    Clamping thickness

    tfix

    40.0
    Hole depth t ≤
    185.0
    Embedment
    150.0
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® SUPERPLUS BLS M16-25/150/40
    Unit
    5
    LIEBIG® SUPERPLUS BLS-P M16-25/200/40 9655210040 25.0 290.0 40.0 235.0 5

    Specifications

    ø
    25.0
    Length
    290.0
    Clamping thickness

    tfix

    40.0
    Hole depth t ≤
    235.0
    Embedment
    200.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    LIEBIG® SUPERPLUS BLS-P M16-25/200/40
    Unit
    5

    Talk to a LIEBIG Anchoring Consultant

    Contact us for expert specialist guidance

    Our highly experienced team is on hand to offer application support, design & calculation advice, and technical assistance. They will also be able to supply specific product literature and give free access to EJOT ANCHOR FIX®, our anchor dimensioning software.
