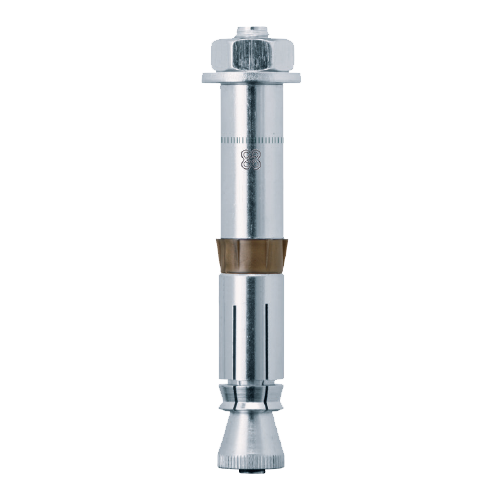

LIEBIG® Superplus BLS
Specification
-
Applications
This product has several applications including fixing:
- Steel Baseplates & Columns
- Structural beams & steel work
- Facades
- Steel & industrial plants
- Power plants & nuclear
- Machines
- M&E: overhead lines & catenary systems
- Tunnel ventilation & jet fans
- Safety Barriers and guide rails
- Lifts & elevator variations
- Cranes & Crane rails
-
Properties
- Simplest, quickest and safest solution on the market, this unique heavy-duty & high capacity anchor is for push-through installations and preset installation methods into cracked and non-cracked concrete
- Its automatic self-undercut technology created by applying torque, is designed for increased reliability
- No special drill bits needed making for easy and cheaper installation
- Minimal expansion forces allow for small spacings and edge distances
- Lower installed cost than traditional undercut anchors
The sleeves outer cutting teeth expand and undercut into the base material - Shallow embedment depths
- Its anti-rotational keys allow for additional friction hold or overhead applications
- Removable
- Good stability for overhead installations
-
Technical specifications
- ETA approved
- UKTA approved
- Fire resistant
- ACI 355 Nuclear performance standard
- Material: Grade 8.8 Carbon steel zinc plated & ZP for dry indoor and temporary outdoor use
- Thread Size: M6 - M16
- Drive: Hex nut
- C1/C2 Seismic rating
Additional information
When choosing your product below, please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order, including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | ø mm | Clamping thickness tfix≤ mm |
Thread diameter mm | Unit | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| LIEBIG® SUPERPLUS BLS M8-14/40/15 | 9654040015 | 82.0 | 14.0 | 15.0 | 8.0 | 60.0 | 40.0 | 15.0 | Carbon Steel | 25 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M8-14/80/25 | 9654080025 | 130.0 | 14.0 | 25.0 | 8.0 | 100.0 | 80.0 | 25.0 | Carbon Steel | 25 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M12-20/80/15 | 9650080015 | 130.0 | 20.0 | 15.0 | 12.0 | 105.0 | 80.0 | 15.0 | Carbon Steel | 10 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M12-20/80/30 | 9650080030 | 145.0 | 20.0 | 30.0 | 12.0 | 105.0 | 80.0 | 30.0 | Carbon Steel | 10 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M12-20/150/30 | 9650150030 | 215.0 | 20.0 | 30.0 | 12.0 | 175.0 | 150.0 | 30.0 | Carbon Steel | 10 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M12-20/150/50 | 9650150050 | 20.0 | 50.0 | 12.0 | 50.0 | Carbon Steel | 10 | |||
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M16-25/150/30 | 9655150030 | 220.0 | 25.0 | 30.0 | 16.0 | 185.0 | 150.0 | 30.0 | Carbon Steel | 5 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M16-25/200/40 | 9655200040 | 280.0 | 25.0 | 40.0 | 16.0 | 235.0 | 200.0 | 40.0 | Carbon Steel | 10 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M16-25/200/60 | 9655200060 | 300.0 | 25.0 | 60.0 | 16.0 | 235.0 | 200.0 | 60.0 | Carbon Steel | 5 |
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M16-25/150/60 | 9655150060 | 25.0 | 60.0 | 16.0 | 60.0 | Carbon Steel | 5 | |||
Specifications
|
||||||||||
| LIEBIG® SUPERPLUS BLS M12-20/125/30 | 9650125030 | 12.0 | 30.0 | Carbon Steel | 10 | |||||
Specifications
|
