  6. LIEBIG® Anchor AS

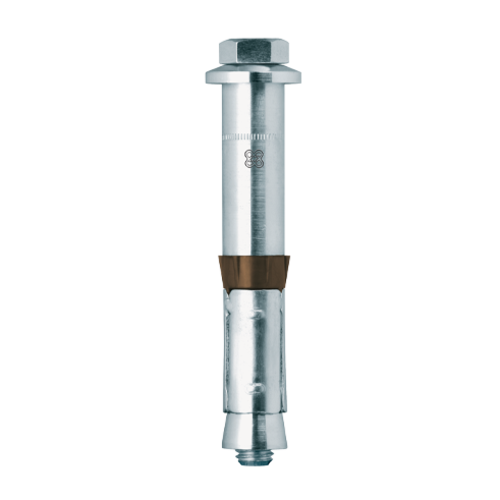

LIEBIG® Anchor AS


Specification

  • Applications

    This anchor has several applications including:

    • Machinery
    • Guard rails
    • Steel baseplates
    • Storage and racking
    • Facades
    • Cable trays
    • Lifting systems
    • Gates
    • Steel construction

  • Properties

    • Special lengths available
    • Torque indication from domed washer allowing correct installation.
    • Economical high-capacity anchor for a wide range of uses
    • Heavy duty anchor for high loads

  • Technical specifications

    • ETA approved for cracked and non-cracked concrete
    •  Hex nut
    • Thread Size: M6 - M16
    • Material: zinc plated carbon steel

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Length mm Thread Thread diameter mm Hole depth t ≤ mm Clamp thickness mm Effective anchorage depth

    hef mm

    		Unit
    LIEBIG® Anchor AS M6-10/45/5 9650045705 70.0 M6 10.0 60.0 5.0 45.0 50

    Specifications

    Length
    70.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    5.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AS M6-10/45/5
    Unit
    50
    LIEBIG® Anchor AS M6-10/45/15 9650045715 80.0 M6 10.0 60.0 15.0 45.0 50

    Specifications

    Length
    80.0
    Thread
    M6
    Thread diameter
    10.0
    Hole depth t ≤
    60.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    45.0
    Orderidentifier
    LIEBIG® Anchor AS M6-10/45/15
    Unit
    50
    LIEBIG® Anchor AS M12-20/80/15 9650080715 123.0 M12 20.0 100.0 15.0 80.0 10

    Specifications

    Length
    123.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    100.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AS M12-20/80/15
    Unit
    10
    LIEBIG® Anchor AS M12-20/80/40 9650080740 148.0 M12 20.0 100.0 40.0 80.0 10

    Specifications

    Length
    148.0
    Thread
    M12
    Thread diameter
    20.0
    Hole depth t ≤
    100.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    80.0
    Orderidentifier
    LIEBIG® Anchor AS M12-20/80/40
    Unit
    10
    LIEBIG® Anchor AS M8-12/55/15 9652055715 90.0 M8 12.0 70.0 15.0 55.0 25

    Specifications

    Length
    90.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    55.0
    Orderidentifier
    LIEBIG® Anchor AS M8-12/55/15
    Unit
    25
    LIEBIG® Anchor AS M8-12/55/40 9652055740 115.0 M8 12.0 70.0 40.0 65.0 25

    Specifications

    Length
    115.0
    Thread
    M8
    Thread diameter
    12.0
    Hole depth t ≤
    70.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AS M8-12/55/40
    Unit
    25
    LIEBIG® Anchor AS M10-15/65/15 9655065715 105.0 M10 15.0 85.0 15.0 65.0 25

    Specifications

    Length
    105.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AS M10-15/65/15
    Unit
    25
    LIEBIG® Anchor AS M10-15/65/40 9655065740 130.0 M10 15.0 85.0 40.0 65.0 10

    Specifications

    Length
    130.0
    Thread
    M10
    Thread diameter
    15.0
    Hole depth t ≤
    85.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    65.0
    Orderidentifier
    LIEBIG® Anchor AS M10-15/65/40
    Unit
    10
    LIEBIG® Anchor AS M16-25/100/15 9655100715 155.0 M16 25.0 125.0 15.0 100.0 10

    Specifications

    Length
    155.0
    Thread
    M16
    Thread diameter
    25.0
    Hole depth t ≤
    125.0
    Clamp thickness
    15.0
    Effective anchorage depth

    hef

    100.0
    Orderidentifier
    LIEBIG® Anchor AS M16-25/100/15
    Unit
    10
    LIEBIG® Anchor AS M16-25/100/40 9655100740 125.0 M16 25.0 100.0 40.0 100.0 10

    Specifications

    Length
    125.0
    Thread
    M16
    Thread diameter
    25.0
    Hole depth t ≤
    100.0
    Clamp thickness
    40.0
    Effective anchorage depth

    hef

    100.0
    Orderidentifier
    LIEBIG® Anchor AS M16-25/100/40
    Unit
    10

    Talk to a LIEBIG Anchoring Consultant

    Contact us for expert specialist guidance

    Our highly experienced team is on hand to offer application support, design & calculation advice, and technical assistance. They will also be able to supply specific product literature and give free access to EJOT ANCHOR FIX®, our anchor dimensioning software.
